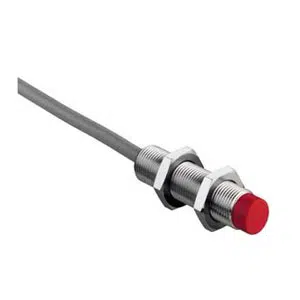

Leuze ISS 112MM/2NC-8N0 Proximity Sensor
The Leuze ISS 112MM/2NC-8N0 Proximity Sensor (Part No: ) offers a 8 mm sensing distance, 10 ... 30 V, DC supply voltage, Transistor, NPN NC (normally closed) output, PVC Cable, 2,000 mm Length connection, 3 -wire . Manufactured by Leuze under the Leuze Proximity Sensor category, this model belongs to the 104 & 108 Series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | ISS 112MM/2NC-8N0 |
Leuze ISS 112MM/2NC-8N0 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | 112 Series |
| Sensing Distance | 8 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 200 mA max. |
| Residual Current | 0.01 mA max. |
| Voltage drop | β€ 2 V |
| Switching Output | Transistor, NPN |
| Switching Principle | NC (normally closed) |
| Switching frequency, max. | 500 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | PVC Cable, 2,000 mm Length |
| Number of conductors or Pins | 3 -wire |
| Design | Cylindrical |
| Dimension (Γ x L) | 12 mm x 39 mm |
| Type of installation | Non-embedded |
| Housing material | Metal |
| Sensing face material | Plastic, Polybutylene (PBT) |
| Housing color | Red, RAL 3000; Silver |
| Standard measuring plate | 24 x 24 mmΒ², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | -25 ... 70 Β°C |
| Degree of protection | IP 67 |
IndMALL Automation Dealing offers Leuze Non-embedded NPN Inductive Switch ISS 112MM/2NC-8N0 part no: 50136015 at unbeatable prices. The Main Technical Parameters of ISS 112MM/2NC-8N0, 50136015 feature 112 series, 8 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 200 mA max. current, Transistor, NPN , NC (normally closed) , 500 Hz, 1 Piece(s) Connection, PVC Cable, 2,000 mm Length, 3 -wire, Cylindrical, 12 mm x 39 mm dimentions, Non-embedded, Metal, Plastic, Polybutylene (PBT), Red, RAL 3000; Silver color, IP 67 degree of protection. Take the First Step with a Quote for your requirement of Leuze Non-embedded NPN Inductive Switch. Choose us for unparalleled pricing and support over other Dealers & Distributors.
