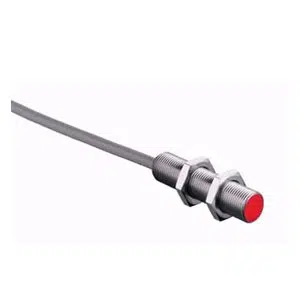

Leuze ISS 112MM/2NC-6E0 Proximity Sensor
The Leuze ISS 112MM/2NC-6E0 Proximity Sensor (Part No: ) offers a 6 mm sensing distance, 10 ... 30 V, DC supply voltage, Transistor, NPN NC (normally closed) output, PVC Cable, 2,000 mm Length connection, 3 -wire . Manufactured by Leuze under the Leuze Proximity Sensor category, this model belongs to the 104 & 108 Series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | ISS 112MM/2NC-6E0 |
Leuze ISS 112MM/2NC-6E0 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | 112 Series |
| Sensing Distance | 6 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 200 mA max. |
| Residual Current | 0.01 mA max. |
| Voltage drop | β€ 2 V |
| Switching Output | Transistor, NPN |
| Switching Principle | NC (normally closed) |
| Switching frequency, max. | 800 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | PVC Cable, 2,000 mm Length |
| Number of conductors or Pins | 3 -wire |
| Design | Cylindrical |
| Dimension (Γ x L) | 12 mm x 39 mm |
| Type of installation | Embedded |
| Housing material | Metal |
| Sensing face material | Plastic, Polybutylene (PBT) |
| Housing color | Red, RAL 3000; Silver |
| Standard measuring plate | 18 x 18 mmΒ², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | -25 ... 70 Β°C |
| Degree of protection | IP 67 |
Call us forLeuze Polybutylene Inductive Switch ISS 112MM/2NC-6E0 part no: 50136027 at the best rates. The Main Technical Parameters of ISS 112MM/2NC-6E0, 50136027 feature 112 series, 6 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 200 mA max. current, Transistor, NPN, NC (normally closed) , 800 Hz, 1 Piece(s) Connection, PVC Cable, 2,000 mm Length, 3 -wire, Cylindrical, 12 mm x 39 mm dimensions, Embedded, Metal, Plastic, Polybutylene (PBT), Red, RAL 3000; Silver color, IP 67 degree of protection. at the best rates of Leuze 4.86mm Operating Range Inductive Switch. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
