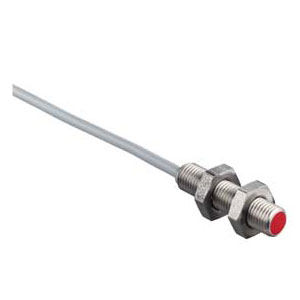

ISS 108MM/4NO-2E0-M12: 50134732 - Leuze NO Inductive Switch
Technical Specifications of Leuze ISS 108MM/4NO-2E0-M12 50134732:
| Sensing Distance | 2 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Switching Output | Transistor, PNP |
| Switching Principle | NO (normally open) |
Leuze NO Inductive Switch ISS 108MM/4NO-2E0-M12, 50134732 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 108 |
| Sensing Distance | 2 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 100 mA max. |
| Residual Current | 0.01 mA max. |
| Voltage drop | β€ 2 V |
| Switching Output | Transistor, PNP |
| Switching Principle | NO (normally open) |
| Switching frequency, max. | 2,000 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M12 Connector |
| Number of conductors or Pins | 4 -pin |
| Design | Cylindrical |
| Dimension (Γ x L) | 8 mm x 32 mm |
| Type of installation | Embedded |
| Housing material | Metal |
| Sensing face material | Plastic, Polyoxymethylene (POM) |
| Housing color | Red, RAL 3000; Silver |
| Standard measuring plate | 8 x 8 mmΒ², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | -25 ... 70 Β°C |
| Degree of protection | IP 67 |
Talk to Our Engineer for Leuze NO Inductive Switch ISS 108MM/4NO-2E0-M12 part no: 50134732 with exclusive offers. Core System Specifications ofISS 108MM/4NO-2E0-M12,50134732 feature 108 series, 2 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 100 mA max. current, Transistor, PNP , NO (normally open) , 2,000 Hz, 0.01 mA max. β€ 2 V, 1 Piece(s) Connection, M12 Connector, 4 -pin, Cylindrical, 8 mm x 32 mm dimensions, Embedded, Metal, Plastic, Polyoxymethylene (POM), Red, RAL 3000; Silver color, IP 67 degree of protection. Don't Miss Out on a Quote for your requirement of Leuze NO Inductive Switch. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
