Many procurement teams check IS-244PP-44-40N-TB-4 against Sick Proximity Sensor, Leuze Is 118 Mm 4No 8E0 M12 and Leuze Laser Sensor before signing purchase orders, verifying quality, compliance, and after-sales support availability.

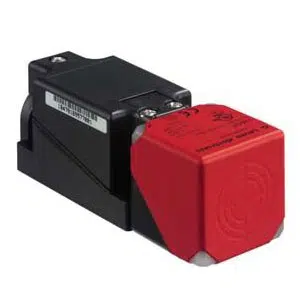

Leuze IS 244PP/44-40N-TB.4 Proximity Sensor
The Leuze IS 244PP/44-40N-TB.4 Proximity Sensor (Part No: ) offers a 40 mm sensing distance, 10 ... 30 V, DC supply voltage, Transistor, PNP NO contact β Antivalent output, Terminal connection, 4 -pin . Manufactured by Leuze under the Leuze Proximity Sensor category, this model belongs to the 180 & 240 Series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | IS 244PP/44-40N-TB.4 |
Leuze IS 244PP/44-40N-TB.4 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | 244 Series |
| Sensing Distance | 40 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 2 Piece(s) |
| Switching Current | 200 mA max. |
| Residual Current | 0.01 mA max. |
| Voltage drop | β€ 2 V |
| O/P 1: Switching Output | Transistor, PNP |
| O/P 1: Switching Principle | NO contact β Antivalent |
| O/P 2: Switching Output | Transistor, PNP |
| O/P 2: Switching Principle | NO contact β Antivalent |
| Switching frequency, max. | 180 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | Terminal |
| Number of conductors or Pins | 4 -pin |
| Design | Cubic |
| Dimension (Γ x L) | 40 mm x 40 mm x 118 mm |
| Type of installation | Non-embedded |
| Housing material | Plastic |
| Sensing face material | Plastic, Polyamide (PA 66) |
| Housing color | Black, Red, RAL 3000 |
| Standard measuring plate | 120 x 120 mmΒ², Fe360 |
| Number of LEDs | 4 Piece(s) |
| Ambient temperature | -25 ... 85 Β°C |
| Degree of protection | IP 68, IP 69K |
Call us for Leuze PNP NC Cubic Inductive Switch IS 244PP/44-40N-TB.4 part no: 50114214 at the lowest pricing. In-depth Technical Analysis of IS 244PP/44-40N-TB.4, 50114214 feature 244 series, 40 mm Sensing, 10 ... 30 V, DC power supply, 2 Piece(s) digital switching output, 200 mA max. current, Transistor, PNP , NO contact β Antivalent output 1, Transistor, PNP , NO contact β Antivalent output 2, 180 Hz, 1 Piece(s) Connection, Terminal, 4 -pin, Cubic, 40 mm x 40 mm x 118 mm dimentions, Non-embedded, Plastic, Polyamide (PA 66), 4 Piece(s) LEDs, Black, Red, RAL 3000 color, IP 68, IP 69K degree of protection.Capture the Best Deal with a Quote for your requirement of Leuze PNP NC Cubic Inductive Switch. Our promise: More affordable pricing and more personalized support than other Dealers.
