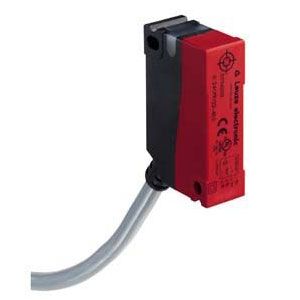

Leuze IS 240PP/44-4E0 Proximity Sensor
The Leuze IS 240PP/44-4E0 Proximity Sensor (Part No: ) offers a 4 mm sensing distance, 10 ... 30 V, DC supply voltage, Transistor, PNP NO contact – Antivalent output, PVC Cable, 2m Length connection, 4 -wire . Manufactured by Leuze under the Leuze Proximity Sensor category, this model belongs to the 180 & 240 Series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | IS 240PP/44-4E0 |
Leuze IS 240PP/44-4E0 Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | 240 Series |
| Sensing Distance | 4 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 2 Piece(s) |
| Switching Current | 250 mA max. |
| Residual Current | 0.01 mA max. |
| Voltage drop | ≤ 2 V |
| O/P 1: Switching Output | Transistor, PNP |
| O/P 1: Switching Principle | NO contact – Antivalent |
| O/P 2: Switching Output | Transistor, PNP |
| O/P 2: Switching Principle | NO contact – Antivalent |
| Switching frequency, max. | 1,400 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | PVC Cable, 2m Length |
| Number of conductors or Pins | 4 -wire |
| Design | Cubic |
| Dimension (Ø x L) | 12 mm x 40 mm x 26 mm |
| Type of installation | Embedded |
| Housing material | Plastic |
| Sensing face material | Plastic, Polyamide (PA 66) |
| Housing color | Black, Red, RAL 3000 |
| Standard measuring plate | 12 x 12 mm², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
Obtain a Quote for Leuze PNP NO Contact–Antivalent Switch IS 240PP/44-4E0 part no: 50114207 at economical prices. Specifications Overview for IS 240PP/44-4E0, 50114207 reveals 240 series, 4 mm Sensing, 10 ... 30 V, DC power supply, 2 Piece(s) digital switching output, 250 mA max. current, Transistor, PNP , NO contact – Antivalent output 1, Transistor, PNP , NO contact – Antivalent output 2, 1,400 Hz, 1 Piece(s) Connection, PVC Cable, 2m Length, 4 -wire, Cubic, 12 mm x 40 mm x 26 mm dimentions, Embedded, Plastic, Polyamide (PA 66), 1 Piece(s) LEDs, Black, Red, RAL 3000 color, IP 67 degree of protection. Take the First Step with a Quote for your requirement of Leuze PNP NO Contact–Antivalent Switch. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
