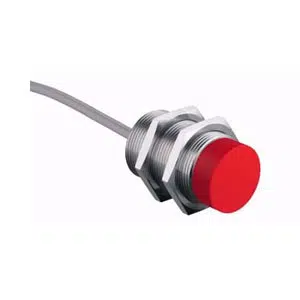

Leuze IS 230MM/2NO-40N Proximity Sensor
The Leuze IS 230MM/2NO-40N Proximity Sensor (Part No: ) offers a 40 mm sensing distance, 10 ... 30 V, DC supply voltage, Transistor, NPN NO (normally open) output, PVC Cable, 2,000mm Length connection, 3 -wire . Manufactured by Leuze under the Leuze Proximity Sensor category, this model belongs to the 180 & 240 Series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | IS 230MM/2NO-40N |
Leuze IS 230MM/2NO-40N Proximity Sensor โ Technical Specifications
| Specification | Value |
|---|---|
| Series | 230 Series |
| Sensing Distance | 40 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 200 mA |
| Residual Current | 0.01 mA |
| Voltage drop | โค 2 V |
| O/P 1: Switching Output | Transistor, NPN |
| O/P 1: Switching Principle | NO (normally open) |
| O/P 2: Switching Output | - |
| O/P 2: Switching Principle | - |
| Switching frequency, max. | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | PVC Cable, 2,000mm Length |
| Number of conductors or Pins | 3 -wire |
| Design | Cylindrical |
| Dimension (ร x L) | 30 mm x 62 mm |
| Type of installation | Non-embedded |
| Housing material | Metal |
| Sensing face material | Plastic, Polybutylene (PBT) |
| Housing color | Red, RAL 3000, Silver |
| Standard measuring plate | 120 x 120 mmยฒ, Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | Operation: -25 ... 70 ยฐC Storage: -25 ... 70 ยฐC |
| Degree of protection | IP 67 |
Get A Quote for Leuze PVC Cable NPN Cylindrical Switch IS 230MM/2NO-40N part no: 50109728 at the best price. Here are the brief Technical Specifications of IS 230MM/2NO-40N, 50109728 are 230 series, 40 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 200 mA current, Transistor, NPN, NO (normally open) output, 100 Hz, 1 Piece(s) Connection, PVC Cable, 2,000mm Length, 3 -wire, Cylindrical, 30 mm x 62 mm dimentions, Non-embedded, Plastic, Polybutylene (PBT), 1 Piece(s) LEDs, Red, RAL 3000, Silver color, IP 67 degree of protection. It's Time to get a Quote for your requirement of Leuze PVC Cable NPN Cylindrical Switch. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
