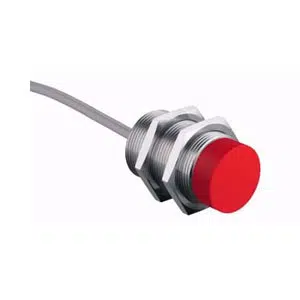

IS 230MM/1NO.3-15N: 50128154 - Leuze M30 Relay NO Cylindrical Switch
Technical Specifications of Leuze IS 230MM/1NO.3-15N 50128154:
| Spec | Value |
|---|---|
| Sensing Distance | 15 mm |
| Supply Voltage | 10 ... 320 V, AC/DC |
| Switching Output | Relay, NO |
| Switching Principle | NO (normally open) |
Leuze M30 Relay NO Cylindrical Switch IS 230MM/1NO.3-15N, 50128154 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 230 |
| Sensing Distance | 15 mm |
| Supply Voltage | 10 ... 320 V, AC/DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 200 mA |
| Residual Current | - |
| Voltage drop | ≤ 2 V |
| O/P 1: Switching Output | Relay, NO |
| O/P 1: Switching Principle | NO (normally open) |
| O/P 2: Switching Output | - |
| O/P 2: Switching Principle | - |
| Switching frequency, max. | 500 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | PVC Cable, 2,000mm Length |
| Number of conductors or Pins | 2 -wire |
| Design | Cylindrical |
| Dimension (Ø x L) | 30 mm x 50 mm |
| Type of installation | Embedded |
| Housing material | Metal |
| Sensing face material | Plastic, Polybutylene (PBT) |
| Housing color | Red, RAL 3000 Silver |
| Standard measuring plate | 45 x 45 mm², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | Operation: -25 ... 70 °C |
| Degree of protection | IP 67 |
Send Your Inquiry for Leuze M30 Relay NO Cylindrical Switch IS 230MM/1NO.3-15N part no: 50128154 with cost-effective solutions. Essential Technical Specs of IS 230MM/1NO.3-15N, 50128154 are 230 series, 15 mm Sensing, 10 ... 320 V, AC/DC power supply, 1 Piece(s) digital switching output, 200 mA current, Relay, NO, NO (normally open) output, 500 Hz, 1 Piece(s) Connection, PVC Cable, 2,000mm Length, 2 -wire, Cylindrical, 30 mm x 50 mm dimentions, Embedded, Plastic, Polybutylene (PBT), 1 Piece(s) LEDs, Red, RAL 3000
Silver color, IP 67 degree of protection. Capture the Best Deal with a Quote for your requirement of Leuze M30 Relay NO Cylindrical Switch. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
