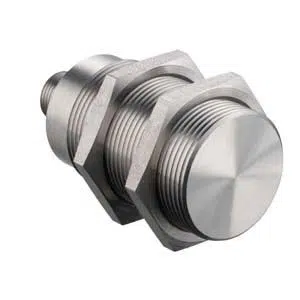

Leuze IS 230FM/4NO.5F-40N-S12 Proximity Sensor
The Leuze IS 230FM/4NO.5F-40N-S12 Proximity Sensor (Part No: ) offers a 40 mm sensing distance, 10 ... 30 V, DC supply voltage, Transistor, PNP NO (normally open) output, M12 Connector connection, 4 -pin . Manufactured by Leuze under the Leuze Proximity Sensor category, this model belongs to the 180 & 240 Series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | IS 230FM/4NO.5F-40N-S12 |
Leuze IS 230FM/4NO.5F-40N-S12 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | 230 Series |
| Sensing Distance | 40 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 200 mA |
| Residual Current | 0.01 mA |
| Voltage drop | β€ 2 V |
| O/P 1: Switching Output | Transistor, PNP |
| O/P 1: Switching Principle | NO (normally open) |
| O/P 2: Switching Output | - |
| O/P 2: Switching Principle | - |
| Switching frequency, max. | 90 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M12 Connector |
| Number of conductors or Pins | 4 -pin |
| Design | Cylindrical |
| Dimension (Γ x L) | 30 mm x 63.5 mm |
| Type of installation | Non-embedded |
| Housing material | Stainless steel |
| Sensing face material | Stainless steel, AISI 316L |
| Housing color | Silver |
| Standard measuring plate | 120 x 120 mmΒ², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | Operation: -25 ... 85 Β°C Storage:-25 ... 85 Β°C |
| Degree of protection | IP 68, IP 69K |
Send Your Inquiry for Leuze 63.5mm PNP Cylindrical Switch IS 230FM/4NO.5F-40N-S12 part no: 50111436 with cost-effective solutions. Essential Technical Specs of IS 230FM/4NO.5F-40N-S12, 50111436 are 230 series, 40 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 200 mA current, Transistor, PNP, NO (normally open) output, 90 Hz, 1 Piece(s) Connection, M12 Connector, 4 -pin, Cylindrical, 30 mm x 63.5 mm dimentions, Non-embedded, Stainless steel, AISI 316L, 1 Piece(s) LEDs, Silver color, IP 68, IP 69K degree of protection. Capture the Best Deal with a Quote for your requirement of Leuze 63.5mm PNP Cylindrical Switch. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
