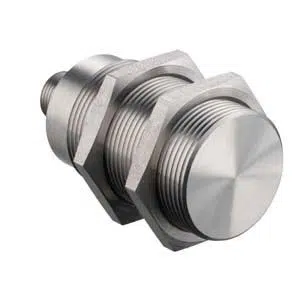

Leuze IS 230FM/4NO.5-10E Proximity Sensor
The Leuze IS 230FM/4NO.5-10E Proximity Sensor (Part No: ) offers a 10 mm sensing distance, 10 ... 30 V, DC supply voltage, Transistor, PNP NO (normally open) output, PUR Cable, 2,000mm Length connection, 3 -wire . Manufactured by Leuze under the Leuze Proximity Sensor category, this model belongs to the 180 & 240 Series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | IS 230FM/4NO.5-10E |
Leuze IS 230FM/4NO.5-10E Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | 230 Series |
| Sensing Distance | 10 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 200 mA |
| Residual Current | 0.01 mA |
| Voltage drop | β€ 2 V |
| O/P 1: Switching Output | Transistor, PNP |
| O/P 1: Switching Principle | NO (normally open) |
| O/P 2: Switching Output | - |
| O/P 2: Switching Principle | - |
| Switching frequency, max. | 50 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | PUR Cable, 2,000mm Length |
| Number of conductors or Pins | 3 -wire |
| Design | Cylindrical |
| Dimension (Γ x L) | 30 mm x 50 mm |
| Type of installation | Embedded |
| Housing material | Stainless steel |
| Sensing face material | Stainless steel, AISI 303 |
| Housing color | Silver |
| Standard measuring plate | 30 x 30 mmΒ², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | Operation: -25 ... 70 Β°C |
| Degree of protection | IP 68, IP 69K |
Please speak to our Technical Engineer for Leuze 50mm Length Inductive Switch IS 230FM/4NO.5-10E part no: 50128164 at attractive prices. Technical Specs Summary of IS 230FM/4NO.5-10E, 50128164 includes 230 series, 10 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 200 mA current, Transistor, PNP, NO (normally open) output, 50 Hz, 1 Piece(s) Connection, PUR Cable, 2,000mm Length, 3 -wire, Cylindrical, 30 mm x 50 mm dimentions, Embedded, Stainless steel, AISI 303, 1 Piece(s) LEDs, Silver color, IP 68, IP 69K degree of protection. Match Your Needs with a Quote for your requirement of Leuze 50mm Length Inductive Switch. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
