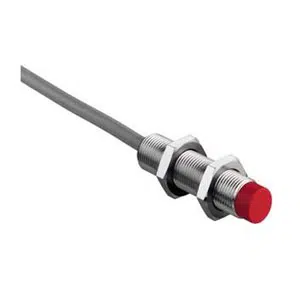

Leuze IS 212MM/2NO-10N Proximity Sensor
The Leuze IS 212MM/2NO-10N Proximity Sensor (Part No: ) offers a 10 mm sensing distance, 10 ... 30 V, DC supply voltage, Transistor, PNP NO (normally open) output, PVC Cable, 2m Length connection, 3 -wire . Manufactured by Leuze under the Leuze Proximity Sensor category, this model belongs to the 180 & 240 Series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | IS 212MM/2NO-10N |
Leuze IS 212MM/2NO-10N Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | 212 Series |
| Sensing Distance | 10 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 200 mA |
| Residual Current | 0.01 mA |
| Voltage drop | ≤ 2 V |
| O/P 1: Switching Output | Transistor, PNP |
| O/P 1: Switching Principle | NO (normally open) |
| O/P 2: Switching Output | - |
| O/P 2: Switching Principle | - |
| Switching frequency, max. | 400 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | PVC Cable, 2m Length |
| Number of conductors or Pins | 3 -wire |
| Design | Cylindrical |
| Dimension (Ø x L) | 12 mm x 52 mm |
| Type of installation | Non-embedded |
| Housing material | Metal |
| Sensing face material | Plastic, Polybutylene (PBT) |
| Housing color | Red, RAL 3000, Silver |
| Standard measuring plate | 30 x 30 mm², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | Operation: -25 ... 70 °C Operation: -25 ... 70 °C |
| Degree of protection | IP 67 |
Ask for the Pricing of Leuze 8.1mm Operating Range Switch IS 212MM/2NO-10N part no: 50111952 at unbeatable prices. Detailed Specifications of IS 212MM/2NO-10N, 50111952 feature 212 series, 10 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 200 mA current, Transistor, PNP, NO (normally open) output, 400 Hz, 1 Piece(s) Connection, PVC Cable, 2m Length, 3 -wire, Cylindrical, 12 mm x 52 mm dimentions, Non-embedded, Plastic, Polybutylene (PBT), 1 Piece(s) LEDs, Red, RAL 3000, Silver color, IP 67 degree of protection.Now's the Time to Secure a Quote for your requirement of Leuze 8.1mm Operating Range Switch. We're committed to offering more favorable pricing and more responsive support than other Traders.
