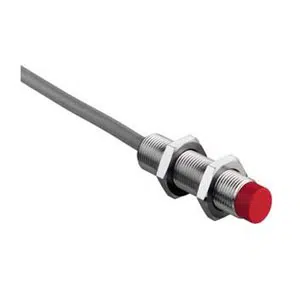

Leuze IS 212MM/2NO-8N0 Proximity Sensor
The Leuze IS 212MM/2NO-8N0 Proximity Sensor (Part No: ) offers a 8mm sensing distance, 10 ... 30 V, DC supply voltage, Transistor, NPN NO (normally open) output, PVC Cable, 2m Length connection, 3 -wire . Manufactured by Leuze under the Leuze Proximity Sensor category, this model belongs to the 180 & 240 Series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | IS 212MM/2NO-8N0 |
Leuze IS 212MM/2NO-8N0 Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | 212 Series |
| Sensing Distance | 8mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 200 mA |
| Residual Current | 0.01 mA |
| Voltage drop | ≤ 2 V |
| O/P 1: Switching Output | Transistor, NPN |
| O/P 1: Switching Principle | NO (normally open) |
| O/P 2: Switching Output | - |
| O/P 2: Switching Principle | - |
| Switching frequency, max. | 1,400 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | PVC Cable, 2m Length |
| Number of conductors or Pins | 3 -wire |
| Design | Cylindrical |
| Dimension (Ø x L) | 12 mm x 52 mm |
| Type of installation | Non-embedded |
| Housing material | Metal |
| Sensing face material | Plastic, Polybutylene (PBT) |
| Housing color | Red, RAL 3000, Silver |
| Standard measuring plate | 24 x 24 mm², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | Operation: -25 ... 70 °C Operation: -25 ... 70 °C |
| Degree of protection | IP 67 |
Reach Us by Email for Leuze 8mm Non-embedded Inductive Switch IS 212MM/2NO-8N0 part no: 50112806at the best rates. Technical Configuration of IS 212MM/2NO-8N0, 50112806 are 212 series, 8mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 200 mA current, Transistor, NPN, NO (normally open) output, 1,400 Hz, 1 Piece(s) Connection, PVC Cable, 2m Length, 3 -wire, Cylindrical, 12 mm x 52 mm dimentions, Non-embedded, Plastic, Polybutylene (PBT), 1 Piece(s) LEDs, Red, RAL 3000, Silver color, IP 67 degree of protection. Unlock Exclusive Pricing with a Quote for your requirement of Leuze 8mm Non-embedded Inductive Switch. We're committed to offering more favorable pricing and more responsive support than other Distributors.
