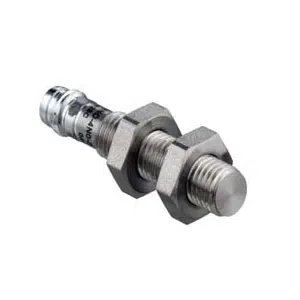

Leuze IS 208FM/2NO.5-2E0 | 50128184
Technical Specifications of Leuze IS 208FM/2NO.5-2E0 50128184:
| Spec | Value |
|---|---|
| Diameter | 8 mm |
| Thread Size | M8 |
| Type of Installation | Embedded |
| Switching Outputs | NPN |
| Switching Principle | NO (normally open) |
Leuze Silver Housing Color IS 208FM/2NO.5-2E0, 50128184 Technical Specifications:
| Specification | Value |
|---|---|
| Diameter | 8 mm |
| Thread size | M8 |
| Type of installation | Embedded |
| Supply voltage UB | 10 ... 30 V, DC |
| Typ. operating range limit Sn | 2 mm ... 40 mm |
| Switching outputs | NPN |
| Switching principle | NO (normally open) |
| Switching frequency, max. | 600 Hz |
| Connection type | Cable |
| Degree of protection | IP 68 | IP 69K |
| Housing | Stainless steel |
| Active surface | Stainless steel, AISI 303 |
Obtain a Quote for IS 208FM/2NO.5-2E0, 50128184 at attractive prices. Core System Specifications of Leuze Silver Housing Color are Stainless steel, AISI 303, 600 Hz, NO (normally open), 10 ... 30 V, DC, 2 mm ... 40 mm , NPN, 2 mm ... 40 mm & 8 mm. It functionality Includes Cable, Embedded & M8. Elevate Your Project with a Quote for your requirement of IS 208FM/2NO.5-2E0. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
