During technical comparisons, IS-204MP-4NC-1E5 appears alongside Sick Proximity Sensor, Leuze Is 118 Mm 4No 8E0 M12 and Leuze Laser Sensor so engineers assess signal types, ingress protection, and ambient tolerances accurately.

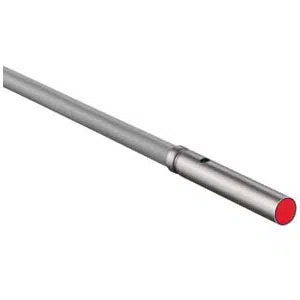

Leuze IS 204MP/4NC-1E5 | 50133132
Technical Specifications of Leuze IS 204MP/4NC-1E5 50133132:
| Diameter | 4 mm |
| Thread Size | M5 |
| Type of Installation | Embedded |
| Switching Outputs | PNP |
| Switching Principle | NC (normally closed) |
Leuze miniature inductive switch IS 204MP/4NC-1E5, 50133132 Technical Specifications:
| Specification | Value |
|---|---|
| Diameter | 4 mm |
| Thread size | M5 |
| Type of installation | Embedded |
| Supply voltage UB | 10 ... 30 V, DC |
| Typ. operating range limit Sn | 1 mm ... 3 mm |
| Switching outputs | PNP |
| Switching principle | NC (normally closed) |
| Switching frequency, max. | 5,000 Hz |
| Connection type | Cable |
| Degree of protection | IP 67 |
| Housing | Stainless steel |
| Active surface | Plastic |
IndMALL Automation Offers Leuze miniature inductive switch, IS 204MP/4NC-1E5, 50133132 with exclusive offers. Component Specifications of IS 204MP/4NC-1E5 features Leuze miniature inductive switch IS 204MP/4NC-1E5, 50133132 Technical Specifications:, 4 mm, M5, Embedded , 10 ... 30 V, DC, 1 mm ... 3 mm, PNP & NC (normally closed). It rounds off its features with 5,000 Hz, Cable & IP 67. Don't Miss Out on a Quote for your requirement of Leuze miniature inductive switch. Our competitive edge: better pricing and support than other Suppliers.
