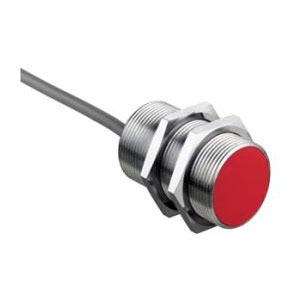

IS 130 MM/2NO-10E: 50129988 - Leuze Metal Nickel-plated brass Switch
Technical Specifications of Leuze IS 130 MM/2NO-10E 50129988:
| Spec | Value |
|---|---|
| Sensing Distance | 10 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Switching Output | Transistor, NPN |
| Switching Principle | NC (normally closed) |
Leuze Metal Nickel-plated brass Switch IS 130 MM/2NO-10E, 50129988 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 130 |
| Sensing Distance | 10 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 200 mA max. |
| Residual Current | 0.01 mA max. |
| Voltage drop | ≤ 2 V |
| Switching Output | Transistor, NPN |
| Switching Principle | NC (normally closed) |
| Switching frequency, max. | 300 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | PVC Cable, 2m Length |
| Number of conductors or Pins | 3 -wire |
| Design | Cylindrical |
| Dimension (Ø x L) | 30 mm x 60 mm |
| Type of installation | Embedded |
| Housing material | Metal |
| Sensing face material | Plastic, Polybutylene (PBT) |
| Housing color | Red, RAL 3000; Silver |
| Standard measuring plate | 30 x 30 mm², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
