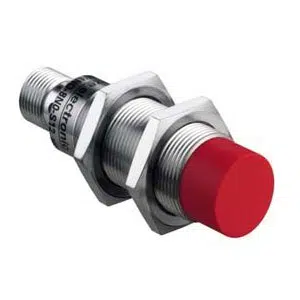

Leuze IS 118 MM/4NO-16N-M12 Proximity Sensor
The Leuze IS 118 MM/4NO-16N-M12 Proximity Sensor (Part No: ) offers a 16 mm sensing distance, 10 ... 30 V, DC supply voltage, Transistor, PNP NO (normally open) output, M12 Connector connection, 4 -pin . Manufactured by Leuze under the Leuze Proximity Sensor category, this model belongs to the 104 & 108 Series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | IS 118 MM/4NO-16N-M12 |
Leuze IS 118 MM/4NO-16N-M12 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | 118 Series |
| Sensing Distance | 16 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 200 mA max. |
| Residual Current | 0.01 mA max. |
| Voltage drop | β€ 2 V |
| Switching Output | Transistor, PNP |
| Switching Principle | NO (normally open) |
| Switching frequency, max. | 500 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M12 Connector |
| Number of conductors or Pins | 4 -pin |
| Design | Cylindrical |
| Dimension (Γ x L) | 18 mm x 79 mm |
| Type of installation | Non-embedded |
| Housing material | Metal |
| Sensing face material | Plastic, Polybutylene (PBT) |
| Housing color | Red, RAL 3000; Silver |
| Standard measuring plate | 48 x 48 mmΒ², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | -25 ... 70 Β°C |
| Degree of protection | IP 67 |
Call us forLeuze 18mm PNP Inductive Switch IS 118 MM/4NO-16N-M12 part no: 50129985 at the best rates. The Main Technical Parameters of IS 118 MM/4NO-16N-M12, 50129985 feature 118 series, 16 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 200 mA max. current, Transistor, PNP, NO (normally open) , 500 Hz, 1 Piece(s) Connection, M12 Connector, 4 -pin, Cylindrical, 18 mm x 79 mm dimensions, Non-embedded, Metal, Plastic, Polybutylene (PBT), Red, RAL 3000; Silver color, IP 67 degree of protection. at the best rates of Leuze M18 PNP NC Inductive Switch. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
