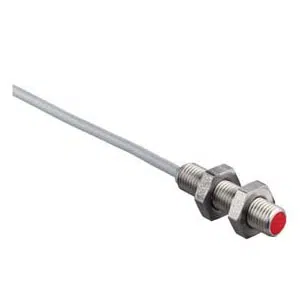

Leuze IS 108 MM/4NC-2E0 Proximity Sensor
The Leuze IS 108 MM/4NC-2E0 Proximity Sensor (Part No: ) offers a 2 mm sensing distance, 10 ... 30 V, DC supply voltage, Transistor, PNP NC (normally closed) output, PVC Cable, 2m Length connection, 3 -wire . Manufactured by Leuze under the Leuze Proximity Sensor category, this model belongs to the 104 & 108 Series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | IS 108 MM/4NC-2E0 |
Leuze IS 108 MM/4NC-2E0 Proximity Sensor โ Technical Specifications
| Specification | Value |
|---|---|
| Series | 108 Series |
| Sensing Distance | 2 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 100 mA max. |
| Residual Current | 0.01 mA max. |
| Voltage drop | โค 2 V |
| Switching Output | Transistor, PNP |
| Switching Principle | NC (normally closed) |
| Switching frequency, max. | 3,000 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | PVC Cable, 2m Length |
| Number of conductors or Pins | 3 -wire |
| Design | Cylindrical |
| Dimension (ร x L) | 8 mm x 45 mm |
| Type of installation | Embedded |
| Housing material | Metal |
| Sensing face material | Plastic, Polyoxymethylene (POM) |
| Housing color | Red, RAL 3000; Silver |
| Standard measuring plate | 8 x 8 mmยฒ, Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | -25 ... 70 ยฐC |
| Degree of protection | IP 67 |
Please speak to our Technical Engineer for Leuze PNP NC Proximity Sensor IS 108 MM/4NC-2E0 part no: 50129929at attractive prices. Technical Specs Summary of IS 108 MM/4NC-2E0, 50129929 feature 108 series, 2 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 100 mA max. current, Transistor, PNP , NC (normally closed) , 3,000 Hz, 1 Piece(s) Connection, PVC Cable, 2m Length, 3 -wire, Cylindrical, 8 mm x 45 mm dimensions, Embedded, Metal, Plastic, Polyoxymethylene (POM), Red, RAL 3000; Silver color, IP 67 degree of protection. Match Your Needs with a Quote for your requirement of Leuze PNP NC Proximity Sensor. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
