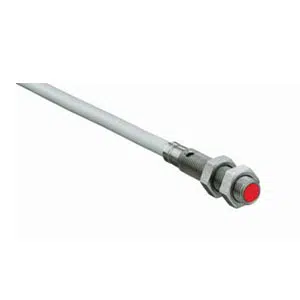

Leuze IS 105MM/4NO-0E8-PUR Proximity Sensor
The Leuze IS 105MM/4NO-0E8-PUR Proximity Sensor (Part No: ) offers a 0.8 mm sensing distance, 10 ... 30 V, DC supply voltage, Transistor, PNP NO (normally open) output, PUR Cable, 2m Length connection, 3 -wire Conductors . Manufactured by Leuze under the Leuze Proximity Sensor category, this model belongs to the 104 & 108 Series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | IS 105MM/4NO-0E8-PUR |
Leuze IS 105MM/4NO-0E8-PUR Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | 104 & 105 Series |
| Sensing Distance | 0.8 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 100 mA max. |
| Residual Current | 0.01 mA max. |
| Voltage drop | β€ 2 V |
| Switching Output | Transistor, PNP |
| Switching Principle | NO (normally open) |
| Switching frequency, max. | 2,000 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | PUR Cable, 2m Length |
| Number of conductors or Pins | 3 -wire Conductors |
| Design | Cylindrical |
| Dimension (Γ x L) | 5 mm x 28 mm |
| Type of installation | Embedded |
| Housing material | Stainless steel |
| Sensing face material | Plastic, Polyoxymethylene (POM) |
| Housing color | Red, RAL 3000; Silver |
| Standard measuring plate | 5 x 5 mmΒ², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | -25 ... 70 Β°C |
| Degree of protection | IP 67 |
Get A Quote for Leuze 2m Cable Inductive Switch IS 105MM/4NO-0E8-PUR part no: 50134445 at the best price. Here are the brief Technical Specifications of IS 105MM/4NO-0E8-PUR, 50134445 feature 105 series, 0.8 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 100 mA max. current, Transistor, PNP , NO (normally open) , 2,000 Hz, 1 Piece(s) Connection, PUR Cable, 2m Length, 3 -wire Conductors, Cylindrical, 5 mm x 28 mm dimensions, Embedded, Stainless steel, Plastic, Polyoxymethylene (POM), Red, RAL 3000; Silver color, IP 67 degree of protection. Customize Your Experience with a Quote for your requirement of Leuze 2m Cable Inductive Switch. Experience the difference with our competitive pricing and superior support over other Suppliers.
