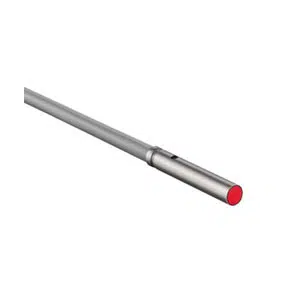

Leuze IS 104MP/4NO-1E2 Proximity Sensor
The Leuze IS 104MP/4NO-1E2 Proximity Sensor (Part No: ) offers a 1.2 mm sensing distance, 10 ... 30 V, DC supply voltage, Transistor, PNP NO (normally open) output, PVC Cable, 2m Length connection, 3 -wire Conductors . Manufactured by Leuze under the Leuze Proximity Sensor category, this model belongs to the 104 & 108 Series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | IS 104MP/4NO-1E2 |
Leuze IS 104MP/4NO-1E2 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | 104 & 105 Series |
| Sensing Distance | 1.2 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 100 mA max. |
| Residual Current | 0.01 mA max. |
| Voltage drop | β€ 2 V |
| Switching Output | Transistor, PNP |
| Switching Principle | NO (normally open) |
| Switching frequency, max. | 2,000 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | PVC Cable, 2m Length |
| Number of conductors or Pins | 3 -wire Conductors |
| Design | Cylindrical |
| Dimension (Γ x L) | 4 mm x 26 mm |
| Type of installation | Embedded |
| Housing material | Stainless steel |
| Sensing face material | Plastic, Polyoxymethylene (POM) |
| Housing color | Red, RAL 3000; Silver |
| Standard measuring plate | 4 x 4 mmΒ², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | -25 ... 70 Β°C |
| Degree of protection | IP 67 |
Mail Us for your needs in Leuze 1.2mm Sensing Inductive Sensor IS 104MP/4NO-1E2 part no: 50132968 with budget-friendly prices. The Main Technical Parameters of IS 104MP/4NO-1E2, 50132968 feature 104 series, 1.2 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 100 mA max. current, Transistor, PNP , NO (normally open) , 2,000 Hz, 1 Piece(s) Connection, PVC Cable, 2m Length, 3 -wire Conductors, Cylindrical, 4 mm x 26 mm dimensions, Embedded, Stainless steel, Plastic, Polyoxymethylene (POM), Red, RAL 3000; Silver color, IP 67 degree of protection. Customize Your Experience with a Quote for your requirement of Leuze 1.2mm Sensing Inductive Sensor. Experience the difference with our competitive pricing and superior support over other Suppliers.
