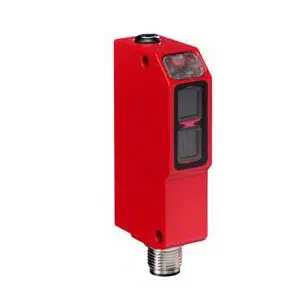

Leuze IPRK 95/44 L.3 | 50022681
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | IPRK 95/44 L.3 |
Leuze autocollimation, warning output, and small light spot (S) retro-reflective sensor IPRK 95/44 L.3 - 50022681 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | - |
| Special version | Autocollimation Small light spot (S) Warning output |
| Sensing Distance | 0 ... 0.3 m |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | 660 nm |
| Type of light spot geometry | Round |
| Supply voltage UB | 10 ... 30 V, DC |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switching |
| Switching Output 2 | Transistor, PNP / Transistor, PNP |
| Switching principle | Dark switching/UB switching |
| Switching frequency | 1,000 Hz |
| Response time | 0.5 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M12 |
| Type | Male |
| Material | Stainless steel |
| No. of pins | 5 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 17 mm x 66 mm x 35 mm |
| Housing material | Metal |
| Metal housing | Zinc |
| Lens cover material | Glass |
| Housing color | Red |
| Type of display | LED |
| Operational controls | - |
| Ambient temperature, operation | -25 ... 60 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67 |
Call us for Leuze autocollimation, warning output, and small light spot (S) retro-reflective sensor IPRK 95/44 L.3 part no: 50022681 at the best rates. Technical Attributes of IPRK 95/44 L.3, 50022681 are Cubic, Design Reflection principle, 17 mm x 66 mm x 35 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC Supply voltage UB, 0 ... 0.3 m Sensing Distance, 5 -pin No. of pins, Metal Housing material, IP 67 degree of protection. Unlock Exclusive Pricing with a Quote for your requirement of Leuze autocollimation, warning output, and small light spot (S) retro-reflective sensor. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
