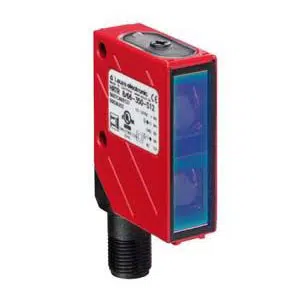

Leuze IHRT 8/4-100-S12 Photoelectric Sensor
Technical Specifications of Leuze IHRT 8/4-100-S12 50103360:
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | IHRT 8/4-100-S12 |
Leuze IHRT 8/4-100-S12 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Special version | Warning output |
| Sensing Distance | 0.03 ... 0.1 m |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | 660 nm |
| Type of light spot geometry | Rectangular |
| Light spot size [at sensor distance] | - |
| Measurement range | - |
| Supply voltage UB | 10 ... 30 V, DC |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switching |
| Switching Output 2 | Transistor, PNP |
| Switching principle | UB switching |
| Switching frequency | 200 Hz |
| Response time | 0.25 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Connector, Turning, 90Β° |
| Thread size | M12 |
| Type | Male |
| Material | - |
| No. of pins | 5 -pin |
| Dimension (W x H x L) | 15 mm x 48 mm x 38 mm |
| Housing material | Metal |
| Plastic housing | Zinc |
| Lens cover material | Glass |
| Housing color | Red |
| Type of display | LED |
| Operational controls | - |
| Ambient temperature, operation | -40 ... 60 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67/IP 69K |
IndMALL Automation Dealing offers IHRT 8/4-100-S12 part no.50103360 at unbeatable prices. The Main Technical Parameters of IHRT 8/4-100-S12 are Cubic, Design Warning output, 15 mm x 48 mm x 38 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs1, Light switching Switching principle, 10 ... 30 V, DC Supply voltage UB, 0.03 ... 0.1 m Sensing Distance, Connector, Turning, 90Β° Type of connection, Metal Housing material, IP 67/IP 69K degree of protection. Take the First Step with a Quote for your requirement of Leuze 0.25 ms Response time Diffuse Sensor. Choose us for unparalleled pricing and support over other Dealers & Distributors.
