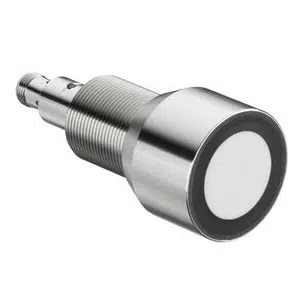

Leuze HTU430B-6000.X3/LT4-M12 Ultrasonic Sensor
Leuze HTU430B-6000.X3/LT4-M12 Ultrasonic Sensor provides 0.6β6 m operating range, 75 kHz ultrasonic frequency, and 15Β° opening angle. This Leuze Ultrasonic Sensor from the 412B Series supports IO-Link data interface, push-pull transistor output, 1.6 Hz switching frequency, 15β30 V DC supply, 380 ms response time, 5-pin connector, metal housing, and IP67/IP68 protection.
| Brand | Leuze |
| Product Type | Ultrasonic Sensor |
| Product | HTU430B-6000.X3/LT4-M12 |
Leuze HTU430B-6000.X3/LT4-M12 Ultrasonic Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cylindrical |
| Thread Size | M30 x 1 mm |
| Dimension | 30 mm x 104.3 mm |
| Operating range | 0.6 ... 6 m |
| Operating principle | Diffuse reflection principle with background suppression |
| Ultrasonic frequency | 75 kHz |
| Opening angle | 15 Β° |
| Adjustment range | - |
| Resolution | - |
| Supply voltage UB | 15 ... 30 V, DC |
| Number of Connections | - |
| Switching voltage | low: β€ 2.5 V |
| Switching output 1 | Transistor, Push-pull |
| Switching frequency | 1.6 Hz |
| Interface Type | IO-Link |
| Response time | 380 ms |
| Connection 1 Function | Data interface Signal OUT Teach input Voltage supply |
| Type of connection | Connector |
| No. of Pin | 5 -pin |
| Housing material | Metal |
| Ambient temperature, operation | -25 ... 50 Β°C |
| Ambient temperature, storage | -30 ... 85 Β°C |
| Degree of protection | IP 67 IP 68 |
The HTU430B-6000.X3/LT4-M12 Leuze Data Interface Connection Ultrasonic Sensor is designed for long-range detection in industrial automation systems. The HTU430B-6000.X3/LT4-M12 operates with a 0.6β6 m operating range, 75 kHz ultrasonic frequency, IO-Link interface, and 1.6 Hz switching frequency. As part of the 412B Series, this Leuze Ultrasonic Sensor integrates measurement and communication in automated processes.
In conveyors, packaging lines, storage systems, and automated material handling, the sensor ensures consistent object detection over extended distances. The push-pull output simplifies PLC connectivity, while the data interface supports parameterization and diagnostics. The cylindrical metal housing with IP67 and IP68 protection enables reliable operation in industrial environments with dust or moisture exposure.
The HTU430B-6000.X3/LT4-M12 from Leuze strengthens the structured ultrasonic portfolio within the 412B Series. With defined electrical characteristics, 5-pin connector configuration, and stable response time, it is suitable for Indian industrial automation applications requiring distance sensing with integrated data communication.
