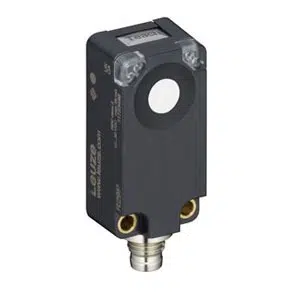

Leuze HTU420B-1000.3/GT-M8 Ultrasonic Sensor
Leuze HTU420B-1000.3/GT-M8 Ultrasonic Sensor provides 20β1000 mm operating range, 220 kHz ultrasonic frequency, and 4Β° operating angle. This Leuze Ultrasonic Sensor belongs to the 412B Series and features IO-Link interface, push-pull transistor output, 12β30 V DC supply, IP67 protection, 1.0 mm resolution, 8 Hz switching frequency, 60 ms response time, 4-pin M8 connector, plastic housing, and operating temperature from -25 to 65 Β°C.
| Brand | Leuze |
| Product Type | Ultrasonic Sensor |
| Product | HTU420B-1000.3/GT-M8 |
Leuze HTU420B-1000.3/GT-M8 Ultrasonic Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Thread Size | M8 |
| Dimension | 20.5 mm x 41 mm x 15 mm |
| Operating range | 0.02 ... 1 m |
| Operating principle | Diffuse reflection principle with background suppression |
| Ultrasonic frequency | 220 kHz |
| Opening angle | 4 Β° |
| Adjustment range | 20 ... 1,000 mm |
| Resolution | 1.0 mm |
| Supply voltage UB | 12 ... 30 V, DC |
| Number of Connections | 1 Piece(s) |
| Switching voltage | high: β₯12V low: β€ 2 V |
| Switching output 1 | Transistor, Push-pull |
| Switching frequency | 8 Hz |
| Interface Type | IO-Link |
| Response time | 60 ms |
| Connection 1 Function | Signal OUT Teach input Voltage supply |
| Type of connection | Connector |
| No. of Pin | 4 -pin |
| Housing material | Plastic |
| Ambient temperature, operation | -25 ... 65 Β°C |
| Ambient temperature, storage | -25 ... 75 Β°C |
| Degree of protection | IP 67 |
The HTU420B-1000.3/GT-M8 Leuze 4 Β° Operating Angle Ultrasonic Sensors variant is a Leuze Ultrasonic Sensor designed for controlled beam detection in industrial automation. The HTU420B-1000.3/GT-M8 delivers a 20β1000 mm operating range, works at 220 kHz ultrasonic frequency, and features a defined 4Β° operating angle for focused sensing. As part of the 412B Series, it integrates IO-Link communication and push-pull transistor output for system compatibility.
In conveyor handling, packaging machinery, and assembly automation, the HTU420B-1000.3/GT-M8 Ultrasonic Sensor ensures consistent distance detection across varying object surfaces. The narrow operating angle supports targeted sensing zones, reducing unintended reflections. With IP67 protection and 12β30 V DC supply, it aligns with standard industrial electrical and environmental requirements.
The HTU420B-1000.3/GT-M8 from Leuze strengthens the 412B ultrasonic sensor platform for structured automation systems. Its specified resolution, response time, and connector-based wiring simplify integration into PLC-based architectures. Leuze ultrasonic sensor solutions are applied in Indian manufacturing sectors where stable switching behavior and accurate medium-range detection are required.
