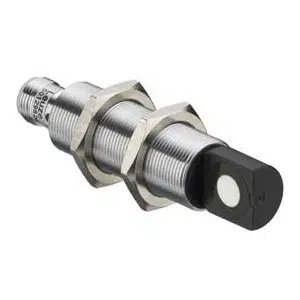

Leuze HTU418B-400.W/4T4-M12 Ultrasonic Sensor
The Leuze HTU418B-400.W/4T4-M12 Ultrasonic Sensor offers a Cylindrical design, Transistor, PNP output, Connector , 5 -pin. Manufactured by Leuze under the Leuze Ultrasonic Sensor category, this model belongs to the 412B Series.
| Brand | Leuze |
| Product Type | Ultrasonic Sensor |
| Product | HTU418B-400.W/4T4-M12 |
Leuze HTU418B-400.W/4T4-M12 Ultrasonic Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cylindrical |
| Thread Size | M18 x 1 mm |
| Dimension | 18 mm x 97.8 mm |
| Operating range | 0.025 ... 0.4 m |
| Operating principle | Diffuse reflection principle with background suppression |
| Ultrasonic frequency | 310 kHz |
| Opening angle | 9 Β° |
| Adjustment range | - |
| Resolution | - |
| Supply voltage UB | 15 ... 30 V, DC |
| Number of Connections | - |
| Switching voltage | low: β€ 2.5 V |
| Switching output 1 | Transistor, PNP |
| Switching frequency | 7 Hz |
| Interface Type | - |
| Response time | 71 ms |
| Connection 1 Function | Signal IN Signal OUT Voltage supply |
| Type of connection | Connector |
| No. of Pin | 5 -pin |
| Housing material | Metal |
| Ambient temperature, operation | -25 ... 70 Β°C |
| Ambient temperature, storage | -25 ... 70 Β°C |
| Degree of protection | IP 67 IP 68 |
IndMALL Automation Offers Leuze Signal In Switching Ultrasonic Sensor HTU418B-400.W/4T4-M12 50129826 with exclusive offers. The Main Technical Parameters of HTU418B-400.W/4T4-M12 are 18 mm x 97.8 mm Dimensions, 0.025 ... 0.4 m Operating Range, 310 kHz Ultrasonic Frequency, 9 Β° Opening Angle, Transistor, PNP Switching Output - Interface Type, Connector, M18 x 1 mm Thread size, 5 -pin Metal Housing material, IP 67 IP 68 degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze Signal In Switching Ultrasonic Sensor.
