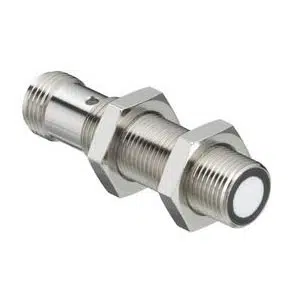

Leuze HTU412B-500/L6T-M12 Ultrasonic Sensor
Leuze HTU412B-500/L6T-M12 Ultrasonic Sensor offers 0.015β0.5 m operating range, 200 kHz ultrasonic frequency, and IO-Link interface for industrial detection. As part of Leuze Diffuse Reflection Ultrasonic Sensors, this cylindrical M12 x 1 mm sensor features 12β30 V DC supply, push-pull transistor output, IP67 protection, 12 Hz switching frequency, <40 ms response time, 5-pin connector, plastic housing, and operation from -25 to 65 Β°C within the 412B series.
| Brand | Leuze |
| Product Type | Ultrasonic Sensor |
| Product | HTU412B-500/L6T-M12 |
Leuze HTU412B-500/L6T-M12 Ultrasonic Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cylindrical |
| Thread Size | M12 x 1 mm |
| Dimension | 12 mm x 50 mm |
| Operating range | 0.015 ... 0.5 m |
| Operating principle | Diffuse reflection principle with background suppression |
| Ultrasonic frequency | 200 kHz |
| Opening angle | 3 ... 11 Β° |
| Adjustment range | 15 ... 500 mm |
| Resolution | < 0.3 mm |
| Supply voltage UB | 12 ... 30 V, DC |
| Number of Connections | 1 Piece(s) |
| Switching voltage | high: β₯12V low: β€ 2 V |
| Switching output 1 | Transistor, Push-pull |
| Switching frequency | 12 Hz |
| Interface Type | IO-Link |
| Response time | < 40 ms |
| Connection 1 Function | Signal IN Signal OUT Teach input Voltage supply |
| Type of connection | Connector |
| No. of Pin | 5-pin |
| Housing material | Plastic |
| Ambient temperature, operation | -25 ... 65 Β°C |
| Ambient temperature, storage | -40 ... 75 Β°C |
| Degree of protection | IP 67 |
The HTU412B-500/L6T-M12 Leuze Diffuse Reflection Ultrasonic Sensors model is designed for precise object detection in industrial automation systems. The HTU412B-500/L6T-M12 operates within a 0.015β0.5 m operating range and uses a 200 kHz ultrasonic frequency for stable sensing. With 12β30 V DC supply and integrated IO-Link interface, it belongs to the 412B series of Leuze ultrasonic sensors built for consistent switching performance.
In conveyor systems, packaging lines, and automated assembly stations, the HTU412B-500/L6T-M12 ensures reliable detection of varied materials. The diffuse reflection principle with background suppression supports stable output in changing environments. Its cylindrical M12 housing and IP67 protection allow installation in compact industrial machinery. The push-pull switching output simplifies integration into PLC-controlled automation panels.
The HTU412B-500/L6T-M12 from Leuze provides defined switching behavior with 12 Hz frequency and response time below 40 ms. As part of Leuze Diffuse Reflection Ultrasonic Sensors in the 412B series, it supports accurate adjustment from 15 to 500 mm with high repeatability. Industrial users select this model for dependable sensing, standardized M12 connectivity, and suitability for continuous automation processes in manufacturing environments.
