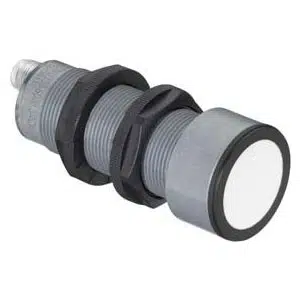

Leuze HTU330-6000.3/4PK-M12 Ultrasonic Sensor
Leuze HTU330-6000.3/4PK-M12 Ultrasonic Sensor offers 0.35β6 m operating range, 75 kHz ultrasonic frequency, and PNP transistor output for industrial detection applications. This Leuze Ultrasonic Sensor features M30 x 1.5 mm cylindrical design, 30 mm x 98.8 mm housing, 9Β° opening angle, 6 mm resolution, 12β30 V DC supply, 2 Hz switching frequency, 250 ms response time, 5-pin M12 connector, plastic housing, -20 to 70 Β°C operation, and IP67 protection under the 412B series.
| Brand | Leuze |
| Product Type | Ultrasonic Sensor |
| Product | HTU330-6000.3/4PK-M12 |
Leuze HTU330-6000.3/4PK-M12 Ultrasonic Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cylindrical |
| Thread Size | M30 x 1.5 mm |
| Dimension | 30 mm x 98.8 mm |
| Operating range | 0.35 ... 6 m |
| Operating principle | Diffuse reflection principle with background suppression |
| Ultrasonic frequency | 75 kHz |
| Opening angle | 9 Β° |
| Adjustment range | - |
| Resolution | 6 mm |
| Supply voltage UB | 12 ... 30 V, DC |
| Number of Connections | - |
| Switching voltage | - |
| Switching output 1 | Transistor, PNP |
| Switching frequency | 2 Hz |
| Interface Type | - |
| Response time | 250 ms |
| Connection 1 Function | Signal IN Signal OUT Voltage supply |
| Type of connection | Connector |
| No. of Pin | 5 -pin |
| Housing material | Plastic |
| Ambient temperature, operation | -20 ... 70 Β°C |
| Ambient temperature, storage | -20 ... 70 Β°C |
| Degree of protection | IP 67 |
The HTU330-6000.3/4PK-M12, categorized under Leuze Cylindrical 30 mm Ultrasonic Sensors, is designed for stable object detection within a 0.35β6 m operating range. This model operates at 75 kHz ultrasonic frequency and provides PNP transistor output with a 12β30 V DC supply. As part of the 412B Series, the HTU330-6000.3/4PK-M12 supports industrial automation systems requiring consistent sensing performance in varied environmental conditions.
In industrial environments such as conveyors, packaging lines, assembly stations, and material handling systems, the sensor enables non-contact distance measurement and object presence detection. The M30 cylindrical construction simplifies panel mounting, while IP67 protection supports operation in dust and moisture-prone areas. The defined 9Β° opening angle ensures focused detection, improving repeatability and reducing unwanted signal interference in compact machine layouts.
The HTU330-6000.3/4PK-M12 from Leuze maintains consistent detection accuracy through its 6 mm resolution and 250 ms response time. Its 5-pin M12 connector and plastic housing support structured wiring and mechanical integration in control panels. Within the 412B Series of Leuze ultrasonic sensors, this model provides reliable sensing capability aligned with industrial automation requirements in India, ensuring long-term operational stability.
