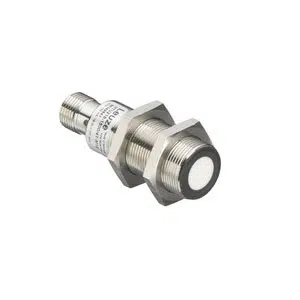

Leuze HTU218-800/PT-M12 Ultrasonic Sensor
The Leuze HTU218-800/PT-M12 Ultrasonic Sensor offers a Cylindrical design, Transistor, PNP output, Connector , 4 -pin. Manufactured by Leuze under the Leuze Ultrasonic Sensor category, this model belongs to the 412B Series.
| Brand | Leuze |
| Product Type | Ultrasonic Sensor |
| Product | HTU218-800/PT-M12 |
Leuze HTU218-800/PT-M12 Ultrasonic Sensor โ Technical Specifications
| Specification | Value |
|---|---|
| Design | Cylindrical |
| Thread Size | M18 x 1 mm |
| Dimension | 18 mm x 55 mm |
| Operating range | 0.08 ... 0.8 m |
| Operating principle | Diffuse reflection principle with background suppression |
| Ultrasonic frequency | 200 kHz |
| Opening angle | 16 ยฐ |
| Adjustment range | 80 ... 800 mm |
| Resolution | 1.0 mm |
| Supply voltage UB | 18 ... 30 V, DC |
| Number of Connections | 1 Piece(s) |
| Switching voltage | high: โฅ9V low: โค 2 V |
| Switching output 1 | Transistor, PNP |
| Switching frequency | 5 Hz |
| Interface Type | - |
| Response time | 100 ms |
| Connection 1 Function | Signal OUT Teach input Voltage supply |
| Type of connection | Connector |
| No. of Pin | 4 -pin |
| Housing material | Metal |
| Ambient temperature, operation | 25 ... 70 ยฐC |
| Ambient temperature, storage | -25 ... 70 ยฐC |
| Degree of protection | IP 67 |
Send Your Inquiry for Leuze 0.8m Operating Range Ultrasonic Sensor HTU218-800/PT-M12 50149539 at the best rates. Technical Configuration of HTU218-800/PT-M12 includes 18 mm x 55 mm Dimensions, 0.08 ... 0.8 m Operating Range, 200 kHz Ultrasonic Frequency, 16 ยฐ Opening Angle, Transistor PNP Switching Output, Connector, M18 x 1 mm Thread size, 4 -pin, Metal Housing material, IP 67 degree of protection. Unlock Exclusive Pricing with a Quote for your requirement of Leuze 0.8m Operating Range Ultrasonic Sensor We're committed to offering more favorable pricing and more responsive support than other Distributors.
