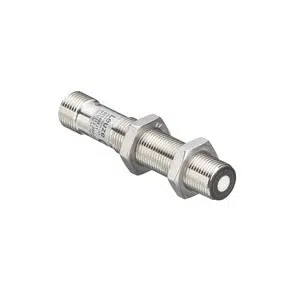

Leuze HTU212-400/4T-M12 Ultrasonic Sensor
The Leuze HTU212-400/4T-M12 Ultrasonic Sensor offers a Cylindrical design, Transistor, PNP output, Connector , 4 -pin. Manufactured by Leuze under the Leuze Ultrasonic Sensor category, this model belongs to the 412B Series.
| Brand | Leuze |
| Product Type | Ultrasonic Sensor |
| Product | HTU212-400/4T-M12 |
Leuze HTU212-400/4T-M12 Ultrasonic Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cylindrical |
| Thread Size | M12 x 1 mm |
| Dimension | 12 mm x 65 mm |
| Operating range | 0.04 ... 0.4 m |
| Operating principle | Diffuse reflection principle with background suppression |
| Ultrasonic frequency | 300 kHz |
| Opening angle | 20 Β° |
| Adjustment range | 40 ... 400 mm |
| Resolution | 1.0 mm |
| Supply voltage UB | 18 ... 30 V, DC |
| Number of Connections | 1 Piece(s) |
| Switching voltage | high: β₯9V low: β€ 2 V |
| Switching output 1 | Transistor, PNP |
| Switching frequency | 10 Hz |
| Interface Type | - |
| Response time | 50 ms |
| Connection 1 Function | Signal OUT Teach input Voltage supply |
| Type of connection | Connector |
| No. of Pin | 4 -pin |
| Housing material | Metal |
| Ambient temperature, operation | 25 ... 70 Β°C |
| Ambient temperature, storage | -25 ... 70 Β°C |
| Degree of protection | IP 67 |
Mail Us for Leuze Transistor PNP Output Ultrasonic Sensors HTU212-400/4T-M12 50149533 at the lowest pricing. Technical Specs Summary of HTU212-400/4T-M12 includes 12 mm x 65 mm Dimensions, 0.04 ... 0.4 m Operating Range, 300 kHz Ultrasonic Frequency, 20 Β° Operating Angle, Transistor, PNP Switching Output, Connector, M12 x 1 mm Thread size, 4 -pin, Metal Housing material, IP 67 degree of protection. Capture the Best Deal with a Quote for your requirement of Leuze Transistor PNP Output Ultrasonic Sensors. Our promise: More affordable pricing and more personalized support than other Dealers.
