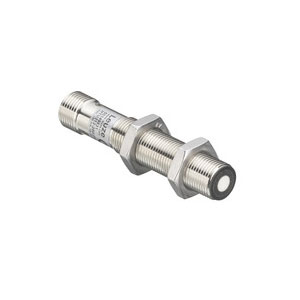

Leuze HTU212-200/PT-M12 Ultrasonic Sensor
Leuze HTU212-200/PT-M12 Ultrasonic Sensor delivers 0.02β0.2 m operating range, 400 kHz ultrasonic frequency, and 9Β° opening angle. This Leuze Ultrasonic Sensor belongs to the 412B Series and features PNP transistor output, 20 Hz switching frequency, 18β30 V DC supply, 1.0 mm resolution, 25 ms response time, M12 metal housing, 4-pin connector, and IP67 protection.
| Brand | Leuze |
| Product Type | Ultrasonic Sensor |
| Product | HTU212-200/PT-M12 |
Leuze HTU212-200/PT-M12 Ultrasonic Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cylindrical |
| Thread Size | M12 x 1 mm |
| Dimension | 12 mm x 65 mm |
| Operating range | 0.02 ... 0.2 m |
| Operating principle | Diffuse reflection principle with background suppression |
| Ultrasonic frequency | 400 kHz |
| Opening angle | 9 Β° |
| Adjustment range | 20 ... 200 mm |
| Resolution | 1.0 mm |
| Supply voltage UB | 18 ... 30 V, DC |
| Number of Connections | 1 Piece(s) |
| Switching voltage | high: β₯9V low: β€ 2 V |
| Switching output 1 | Transistor, PNP |
| Switching frequency | 20 Hz |
| Interface Type | - |
| Response time | 25 ms |
| Connection 1 Function | Signal OUT Teach input Voltage supply |
| Type of connection | Connector |
| No. of Pin | 4 -pin |
| Housing material | Metal |
| Ambient temperature, operation | 25 ... 70 Β°C |
| Ambient temperature, storage | -25 ... 70 Β°C |
| Degree of protection | IP 67 |
The HTU212-200/PT-M12 Leuze Transistor PNP 4 pin Ultrasonic Sensor is a Leuze Ultrasonic Sensor designed for precise short-range detection in industrial automation. The HTU212-200/PT-M12 operates within a 0.02β0.2 m operating range, uses 400 kHz ultrasonic frequency, and integrates a PNP transistor output with 20 Hz switching frequency. As part of the 412B Series, it is engineered for cylindrical M12 installations in compact machinery.
In conveyors, packaging systems, and assembly lines, the HTU212-200/PT-M12 supports consistent object detection regardless of surface color or transparency. The 9Β° opening angle enables focused sensing in restricted mounting spaces. With IP67 protection, metal housing, and 18β30 V DC supply, it operates reliably in demanding production environments.
The HTU212-200/PT-M12 from Leuze strengthens the 412B ultrasonic sensor platform for repeatable switching behavior and stable signal output. Its defined resolution, fast response time, and 4-pin connector simplify wiring and integration. Leuze ultrasonic sensors are applied across Indian manufacturing sectors where accurate detection and dependable performance are required.
