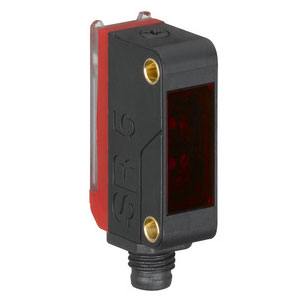

Leuze HT5B/PX-M8 Photoelectric Sensor
Technical Specifications of Leuze HT5B/PX-M8 50148006:
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | HT5B/PX-M8 |
Leuze HT5B/PX-M8 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Sensing Distance | 0.002 ... 0.4 m |
| Beam path | Focused |
| Light source | LED, Red |
| Wavelength | 645 nm |
| Type of light spot geometry | Round |
| Focal distance | 200 mm |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Open-circuit current | 0 ... 15 mA |
| Switching Output | Transistor, PNP |
| Switching principle | Light switching (dark switching by reversing polarity of UB) |
| Switching frequency | 1,000 Hz |
| Response time | 0.5 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M8 |
| Type | Male |
| Material | Plastic |
| No. of pins | 4 -pin |
| Dimension (W x H x L) | 11 mm x 32.4 mm x 20 mm |
| Housing material | Plastic |
| Plastic housing | PC-ABS |
| Lens cover material | Plastic / PMMA |
| Housing color | Black Red |
| Type of display | LED |
| Operational controls | Multiturn potentiometer |
| Ambient temperature, operation | -40 ... 60 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67 |
IndMALL Automation Dealing offers HT5B/PX-M8 50148006 at unbeatable prices. The Main Technical Parameters of HT5B/PX-M8 are Cubic, Design 10 ... 30 V, DC, Incl. residual ripple, 11 mm x 32.4 mm x 20 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs, Light switching (dark switching by reversing polarity of UB) Switching principle, 0.002 ... 0.4 m Sensing Distance, Connector Type of connection, M8 Thread size, Plastic Housing material, IP 67 degree of protection. Take the First Step with a Quote for your requirement of Leuze Polarity reversal protection Diffuse sensors. Choose us for unparalleled pricing and support over other Dealers & Distributors.
