Leuze HT55CI/LG-200-M12 | 50148201

Leuze HT55CI/LG-200-M12 50148201
Datasheet
BrandLeuze
Product TypePhotoelectric Sensor
ProductHT55CI/LG-200-M12

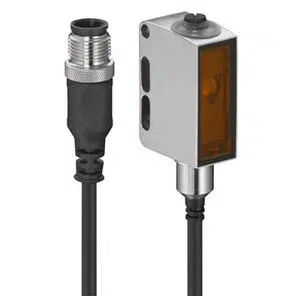

Leuze background suppression M12 diffuse sensor HT55CI/LG-200-M12 - 50148201 Technical Specifications:

SpecificationValue
DesignCubic
Operating principleDiffuse reflection principle with background suppression
Special versionWash-Down design
Sensing Distance0.005 ... 0.6 m
Beam pathFocused
Light sourceLED, Infrared
Wavelength860 nm
Type of light spot geometrysquare
Supply voltage UB10 ... 30 V, DC, Incl. residual ripple
Switching Output 1Transistor, Push-pull
Switching principleIO-Link / light switching (PNP)/dark switching (NPN)
Switching Output 2Transistor, Push-pull
Switching principleDark switching (PNP)/light switching (NPN)
Switching frequency1,000 Hz
Response time0.5 ms
FunctionSignal IN Signal OUT Voltage supply
Type of connectionCable with connector
Cable length200 mm
Sheathing materialPVC
Cable colorBlack
Number of conductors-
Wire cross section0.2 mmΒ²
Thread sizeM12
TypeMale
MaterialStainless steel
No. of pins4 -pin
EncodingA-coded
Dimension (W x H x L)14 mm x 35.4 mm x 25 m
Housing materialStainless steel
Lens cover materialPlastic (PMMA+) with scratch-resistant Indium protective coating
Housing colorSilver
Type of displayLED
Ambient temperature, operation-40 ... 70 Β°C
Ambient temperature, storage-40 ... 70 Β°C
Degree of protectionIP 67 / IP 68 / IP 69K
Get A Quote for Leuze background suppression M12 diffuse sensor HT55CI/LG-200-M12 part no: 50148201 at the best price. Here are the brief Technical Specifications of HT55CI/LG-200-M12, 50148201 are Cubic, Design Diffuse reflection principle with background suppression, 14 mm x 35.4 mm x 25 m Dimension, LED, Infrared Light source, Transistor, Push-pull Switching Outputs 1, IO-Link / light switching (PNP)/dark switching (NPN) Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.005 ... 0.6 m Sensing Distance, Cable with connector Type of connection, Stainless steel Housing material, IP 67 / IP 68 / IP 69K degree of protection. It's Time to get a Quote for your requirement of Leuze background suppression M12 diffuse sensor . We guarantee unmatched pricing and unparalleled support compared to other Distributors.
