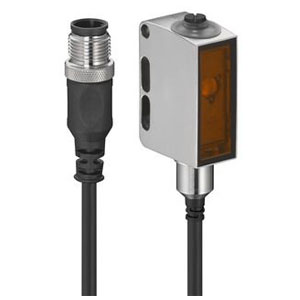

Leuze HT55C.V/LG-200-M12 | 50148214

Leuze HT55C.V/LG-200-M12 50148214
Datasheet
BrandLeuze
Product TypePhotoelectric Sensor
ProductHT55C.V/LG-200-M12

Leuze V-optics,Wash-Down design diffuse sensor HT55C.V/LG-200-M12 - 50148214 Technical Specifications:

SpecificationValue
DesignCubic
Operating principleDiffuse reflection principle with background suppression
Special versionV-optics Wash-Down desi
Sensing Distance0.015 ... 0.15 m
Beam pathFocused
Light sourceLED, Red
Wavelength645 nm
Type of light spot geometryRound
Supply voltage UB10 ... 30 V, DC, Incl. residual ripple
Switching Output 1Transistor, Push-pull
Switching principleIO-Link / light switching (PNP)/dark switching (NPN)
Switching Output 2Transistor, Push-pull
Switching principleDark switching (PNP)/light switching (NPN)
Switching frequency1,000 Hz
Response time0.5 ms
FunctionSignal IN Signal OUT Voltage supply
Type of connectionCable with connector
Cable length200 mm
Sheathing materialPUR
Cable colorBlack
Number of conductors-
Wire cross section0.2 mmΒ²
Thread sizeM12
TypeMale
MaterialStainless steel
No. of pins4 -pin
EncodingA-coded
Dimension (W x H x L)14 mm x 35.4 mm x 25 mm
Housing materialStainless steel
Lens cover materialPlastic (PMMA+) with scratch-resistant Indium protective coating
Housing colorSilver
Type of displayLED
Ambient temperature, operation-40 ... 70 Β°C
Ambient temperature, storage-40 ... 70 Β°C
Degree of protectionIP 67 / IP 68 / IP 69K
IndMALL Dealing HT55C.V/LG-200-M12 part no.50148214 at the best rates. The Main Technical Parameters of HT55C.V/LG-200-M12 are Cubic, Design Diffuse reflection principle with background suppression, 14 mm x 35.4 mm x 25 mm Dimension, LED, Red Light source, Transistor, Push-pull Switching Outputs 1, IO-Link / light switching (PNP)/dark switching (NPN) Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.015 ... 0.15 m Sensing Distance, Cable with connector Type of connection, Stainless steel Housing material, IP 67 / IP 68 / IP 69K degree of protection. Take the First Step with a Quote for your requirement of Leuze V-optics,Wash-Down design diffuse sensor. Choose us for unparalleled pricing and support over other Dealers & Distributors..

Related Products

HRTR 55/66,200-S12 HRTR 55/66,200-S12
HRTR 55/66-S,200-S12 HRTR 55/66-S,200-S12

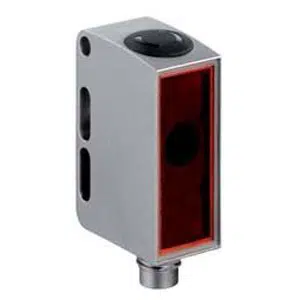

HRTR 55/66-XL,200-S12HRTR 55/66-XL,200-S12
