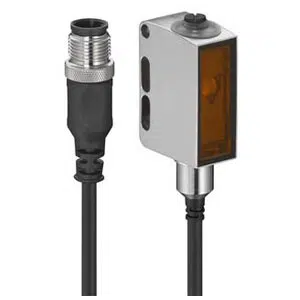

Leuze HT55C/LG-200-M12 | 50148203
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | HT55C/LG-200-M12 |
Leuze 14 mm x 35.4 mm x 25mm Dimensions diffuse sensor HT55C/LG-200-M12 - 50148203 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Special version | Wash-Down design |
| Sensing Distance | 0.005 ... 0.45 m |
| Beam path | Focused |
| Light source | LED, Red |
| Wavelength | 645 nm |
| Type of light spot geometry | square |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, Push-pull |
| Switching principle | IO-Link / light switching (PNP)/dark switching (NPN) |
| Switching Output 2 | Transistor, Push-pull |
| Switching principle | Dark switching (PNP)/light switching (NPN) |
| Switching frequency | 1,000 Hz |
| Response time | 0.5 ms |
| Function | Signal IN Signal OUT Voltage supply |
| Type of connection | Cable with connector |
| Cable length | 200 mm |
| Sheathing material | PVC |
| Cable color | Black |
| Number of conductors | - |
| Wire cross section | 0.2 mmΒ² |
| Thread size | M12 |
| Type | Male |
| Material | Stainless steel |
| No. of pins | 4 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 14 mm x 35.4 mm x 25 m |
| Housing material | Stainless steel |
| Lens cover material | Plastic (PMMA+) with scratch-resistant Indium protective coating |
| Housing color | Silver |
| Type of display | LED |
| Ambient temperature, operation | -40 ... 70 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67 / IP 68 / IP 69K |
IndMALL Dealing HT55C/LG-200-M12 part no.50148203 at the best rates. The Main Technical Parameters of HT55C/LG-200-M12 are Cubic, Design Diffuse reflection principle with background suppression, 14 mm x 35.4 mm x 25 m Dimension, LED, Red Light source, Transistor, Push-pull Switching Outputs 1, IO-Link / light switching (PNP)/dark switching (NPN) Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.005 ... 0.45 m Sensing Distance, Cable with connector Type of connection, Stainless steel Housing material, IP 67 / IP 68 / IP 69K degree of protection. Take the First Step with a Quote for your requirement of Leuze 14 mm x 35.4 mm x 25mm Dimensions diffuse sensor. Choose us for unparalleled pricing and support over other Dealers & Distributors..
