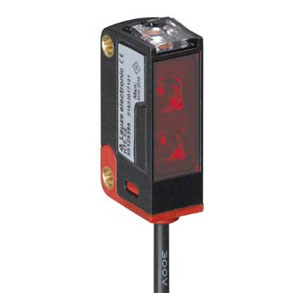

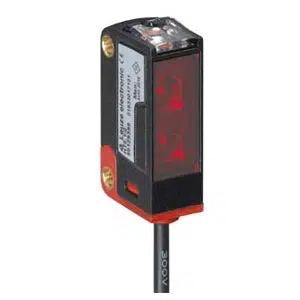

Leuze HT5.1/4X-200-M12 Photoelectric Sensor
Technical Specifications of Leuze HT5.1/4X-200-M12 50137565:
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | HT5.1/4X-200-M12 |
Leuze HT5.1/4X-200-M12 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Sensing Distance | 0.005 ... 0.4 m |
| Beam path | Focused |
| Light source | LED, Red |
| Wavelength | 645 nm |
| Type of light spot geometry | Round |
| Focal distance | 200 mm |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output | Transistor, PNP |
| Switching principle | Light switching |
| Switching frequency | 1,000 Hz |
| Response time | 0.5 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable with connector |
| Cable length | 200 mm |
| Sheathing material | PUR |
| Cable color | Black |
| Number of conductors | - |
| Wire cross section | 0.2 mmΒ² |
| Thread size | M12 |
| Type | Male |
| Material | Plastic |
| No. of pins | 4 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 11.4 mm x 32.1 mm x 17.8 mm |
| Housing material | Plastic |
| Plastic housing | PC-ABS |
| Lens cover material | Plastic / PMMA |
| Housing color | Black Red |
| Type of display | LED |
| Operational controls | Multiturn potentiometer |
| Ambient temperature, operation | -40 ... 60 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67 |
Please speak to our Technical Engineer for HT5.1/4X-200-M12 50137565 at attractive prices. Technical Specs Summary of HT5.1/4X-200-M12 are Cubic, Design 10 ... 30 V, DC, Incl. residual ripple, 11.4 mm x 32.1 mm x 17.8 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs, Dark switching Switching principle, Cable with connector, M12 Thread size, Plastic / PMMA, Plastic Housing material, IP 67 degree of protection. Match Your Needs with a Quote for your requirement of Leuze 1,000Hz Switching frequency Diffuse sensors. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
