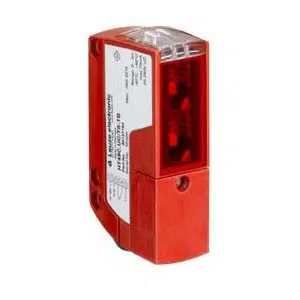

Leuze HT49CI.UC/TS Photoelectric Sensor
The Leuze HT49CI.UC/TS Photoelectric Sensor (Part No: ) offers a Cubic design, 0.005 ... 3 m sensing distance, Relay, NC output, PVC Cable , 5 -wire. Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the HT Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | HT49CI.UC/TS |
Leuze HT49CI.UC/TS Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Special version | - |
| Sensing Distance | 0.005 ... 3 m |
| Beam path | - |
| Light source | LED, Infrared |
| Wavelength | 860 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 20 ... 250 V, AC/DC |
| Switching Output 1 | Relay, NC |
| Switching principle | Light/dark switchable |
| Switching Output 2 | Relay, NO |
| Switching principle | Light/dark switchable |
| Switching frequency | 25 Hz |
| Response time | 20 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable |
| Cable length | 2,000 mm |
| Sheathing material | PVC |
| Cable color | Black |
| Number of conductors | 5 -wire |
| Wire cross section | 0.34 mm² |
| Dimension (W x H x L) | 31 mm x 104 mm x 55.5 mm |
| Housing material | Plastic |
| Lens cover material | Plastic |
| Housing color | Red |
| Type of display | LED |
| Ambient temperature, operation | -40 ... 60 °C |
| Ambient temperature, storage | -40 ... 70 °C |
| Degree of protection | IP 67 |
Give Us a Call for Leuze 0.34 mm² Wire cross section diffuse sensor HT49CI.UC/TS part no: 50127434 at the lowest pricing. In-depth Technical Analysis of HT49CI.UC/TS, 50127434 feature Cubic, Design Diffuse reflection principle with background suppression, Black Dimension, LED, Infrared Light source, Relay, NC Switching Outputs 1, Light/dark switchable Switching principle, 20 ... 250 V, AC/DC Supply voltage UB, 0.005 ... 3 m Sensing Distance, Cable Type of connection, 5 -wire Housing material, -40 ... 60 °C degree of protection. Elevate Your Project with a Quote for your requirement of Leuze 0.34 mm² Wire cross section diffuse sensor. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
