Diffuse reflection principle with background suppression
Special version
AS-Interface, connection via coupling module
Sensing Distance
0.005 ... 1.2 m
Beam path
Focused
Light source
LED, Infrared
Wavelength
860 nm
Type of light spot geometry
Rectangular
Supply voltage UB
10 ... 30 V, DC, Incl. residual ripple
Switching Output 1
Transistor, PNP
Switching principle
Light switching
Switching Output 2
-
Switching principle
-
Switching frequency
250 Hz
Response time
2 ms
Function
Signal OUT
Voltage supply
Type of connection
Cable with connector
Cable length
200 mm
Sheathing material
PUR
Cable color
Black
Number of conductors
-
Wire cross section
0.2 mmΒ²
Thread size
M12
Type
Male
Material
Plastic
No. of pins
4 -pin
Encoding
A-coded
Dimension (W x H x L)
20.5 mm x 76.3 mm x 44 mm
Housing material
Plastic
Lens cover material
Plastic / PMMA
Housing color
Red
Type of display
LED
Ambient temperature, operation
-40 ... 60 Β°C
Ambient temperature, storage
-40 ... 70 Β°C
Degree of protection
IP 67 / IP 69K

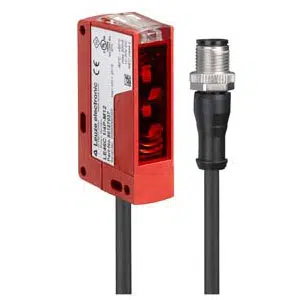

Send Your Inquiry for Leuze AS-Interface, connection via coupling module diffuse sensor HT46CI.SL/4X-200-M12 part no: 50131554 with cost-effective solutions. Essential Technical Specs of HT46CI.SL/4X-200-M12, 50131554 are Cubic, Design Diffuse reflection principle with background suppression, 20.5 mm x 76.3 mm x 44 mm Dimension, LED, Infrared Light source, Transistor, PNP Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.005 ... 1.2 m Sensing Distance, Cable with connector Type of connection, Plastic Housing material, IP 67 / IP 69K degree of protection. Capture the Best Deal with a Quote for your requirement of Leuze AS-Interface, connection via coupling module diffuse sensor. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
