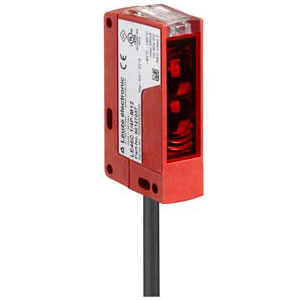

Leuze HT46CI/4P Photoelectric Sensor
The Leuze HT46CI/4P Photoelectric Sensor (Part No: ) offers a Cubic design, 0.005 ... 3 m sensing distance, Transistor, PNP output, PUR Cable , 4 -wire. Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the HT Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | HT46CI/4P |
Leuze HT46CI/4P Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Special version | - |
| Sensing Distance | 0.005 ... 3 m |
| Beam path | Focused |
| Light source | LED, Infrared |
| Wavelength | 860 nm |
| Type of light spot geometry | Rectangular |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switching |
| Switching Output 2 | Transistor, PNP |
| Switching principle | Dark switching |
| Switching frequency | 250 Hz |
| Response time | 2 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable |
| Cable length | 2,000 mm |
| Sheathing material | PUR |
| Cable color | Black |
| Number of conductors | 4 -wire |
| Wire cross section | 0.2 mmΒ² |
| Dimension (W x H x L) | 20.5 mm x 76.3 mm x 44 mm |
| Housing material | Plastic |
| Lens cover material | Plastic / PMMA |
| Housing color | Red |
| Type of display | LED |
| Ambient temperature, operation | -40 ... 60 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67 |
IndMALL Offers leuze < 10% up to 1200 mm Black-white error diffuse sensor HT46CI/4P part no: 50127062 at economical Choices. Product Tech Specs of HT46CI/4P, 50127062 include Cubic, Design Diffuse reflection principle with background suppression, Black Dimension, LED, Infrared Light source, Transistor, PNP Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.005 ... 3 m Sensing Distance, Cable Type of connection, 4 -wire Housing material, -40 ... 60 Β°C degree of protection. Now's the Time to Secure a Quote for your requirement of leuze < 10% up to 1200 mm Black-white error diffuse sensor. Trust in our superior pricing and more dedicated support over other Distributors.
