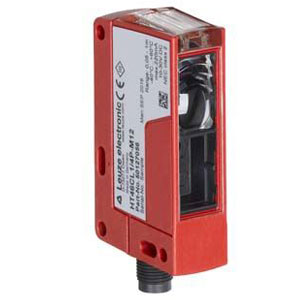

Leuze HT46C.SL/4P-M12 | 50131553
Technical Specifications of Leuze HT46C.SL/4P-M12 50131553:
| Spec | Value |
|---|---|
| Design | Cubic |
| Operating Principle | Diffuse reflection principle with background suppression |
| Sensing Distance | 0.01 ... 1.2 m |
| Light Source | LED, Red |
Leuze 0.01-1.2 m Operating range diffuse sensor HT46C.SL/4P-M12 - 50131553 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Special version | Small light spot (S) |
| Sensing Distance | 0.01 ... 1.2 m |
| Beam path | Focused |
| Light source | LED, Red |
| Wavelength | 630 nm |
| Type of light spot geometry | Rectangular |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switching |
| Switching Output 2 | Transistor, PNP |
| Switching principle | Dark switching |
| Switching frequency | 250 Hz |
| Response time | 2 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M12 |
| Type | Male |
| Material | Plastic |
| No. of pins | 4 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 20.5 mm x 76.3 mm x 44 mm |
| Housing material | Plastic |
| Plastic housing | |
| Lens cover material | Plastic / PMMA |
| Housing color | Red |
| Type of display | LED |
| Ambient temperature, operation | -40 ... 60 °C |
| Ambient temperature, storage | -40 ... 70 °C |
| Degree of protection | IP 67 / IP 69K |
Get A Quote for Leuze 0.01-1.2 m Operating range diffuse sensor HT46C.SL/4P-M12 part no: 50131553 at unbeatable prices. Detailed Specifications of HT46C.SL/4P-M12, 50131553 feature Cubic, Design Diffuse reflection principle with background suppression, 20.5 mm x 76.3 mm x 44 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.01 ... 1.2 m Sensing Distance, Connector Type of connection, Plastic Housing material, IP 67 / IP 69K degree of protection. atch Your Needs with a Quote for your requirement of Leuze 0.01-1.2 m Operating range diffuse sensor. Our pricing and support are unrivaled, especially when compared to other Distributors.
