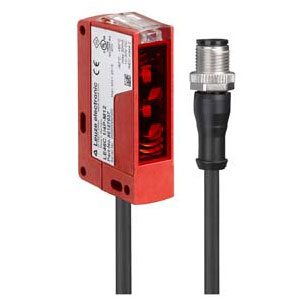

Leuze HT46C/PX-200-M12 | 50127052
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | HT46C/PX-200-M12 |
Leuze A-coded, 4-pin connector diffuse sensor HT46C/PX-200-M12 - 50127052 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Special version | AS-Interface, connection via coupling module |
| Sensing Distance | 0.005 ... 3 m |
| Beam path | Focused |
| Light source | LED, Red |
| Wavelength | 630 nm |
| Type of light spot geometry | Rectangular |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Dark switching |
| Switching Output 2 | - |
| Switching principle | - |
| Switching frequency | 250 Hz |
| Response time | 2 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable with connector |
| Cable length | 200 mm |
| Sheathing material | PUR |
| Cable color | Black |
| Number of conductors | - |
| Wire cross section | 0.2 mmยฒ |
| Thread size | M12 |
| Type | Male |
| Material | Plastic |
| No. of pins | 4 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 20.5 mm x 76.3 mm x 44 mm |
| Housing material | Plastic |
| Lens cover material | Plastic / PMMA |
| Housing color | Red |
| Type of display | LED |
| Ambient temperature, operation | -40 ... 60 ยฐC |
| Ambient temperature, storage | -40 ... 70 ยฐC |
| Degree of protection | IP 67 / IP 69K |
IndMALL Offers Leuze A-coded, 4-pin connector diffuse sensor HT46C/PX-200-M12 part no: 50127052 at economical Choices. Product Tech Specs of HT46C/PX-200-M12, 50127052 include HT46C/PX-200-M12, 50127052 includes Cubic, Design Diffuse reflection principle with background suppression, 20.5 mm x 76.3 mm x 44 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Dark switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.005 ... 3 m Sensing Distance, Cable with connector Type of connection, Plastic Housing material, IP 67 / IP 69K degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze A-coded, 4-pin connector diffuse sensor. Trust in our superior pricing and more dedicated support over other Distributors.
