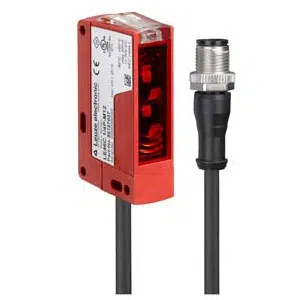

Leuze HT46C/4X-200-M12 | 50130201
Technical Specifications of Leuze HT46C/4X-200-M12 50130201:
| Spec | Value |
|---|---|
| Design | Cubic |
| Operating Principle | Diffuse reflection principle with background suppression |
| Sensing Distance | 0.005 ... 3 m |
| Light Source | LED, Red |
Leuze 3-pin M12 connector diffuse sensor HT46C/4X-200-M12 - 50130201 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Special version | AS-Interface, connection via coupling module |
| Sensing Distance | 0.005 ... 3 m |
| Beam path | Focused |
| Light source | LED, Red |
| Wavelength | 630 nm |
| Type of light spot geometry | Rectangular |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switching |
| Switching Output 2 | - |
| Switching principle | - |
| Switching frequency | 250 Hz |
| Response time | 2 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable with connector |
| Cable length | 200 mm |
| Sheathing material | PUR |
| Cable color | Black |
| Number of conductors | - |
| Wire cross section | 0.2 mm² |
| Thread size | M12 |
| Type | Male |
| Material | Plastic |
| No. of pins | 4 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 20.5 mm x 76.3 mm x 44 mm |
| Housing material | Plastic |
| Plastic housing | |
| Lens cover material | Plastic / PMMA |
| Housing color | Red |
| Type of display | LED |
| Ambient temperature, operation | -40 ... 60 °C |
| Ambient temperature, storage | -40 ... 70 °C |
| Degree of protection | IP 67 / IP 69K |
Please speak to our Technical Engineer for Leuze 3-pin M12 connector diffuse sensor HT46C/4X-200-M12 part no: 50130201 at attractive prices. Technical Specs Summary of HT46C/4X-200-M12, 50130201 includes Cubic, Design Diffuse reflection principle with background suppression, 20.5 mm x 76.3 mm x 44 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.005 ... 3 m Sensing Distance, Cable with connector Type of connection, Plastic Housing material, IP 67 / IP 69K degree of protection. Match Your Needs with a Quote for your requirement of Leuze 3-pin M12 connector diffuse sensor. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
