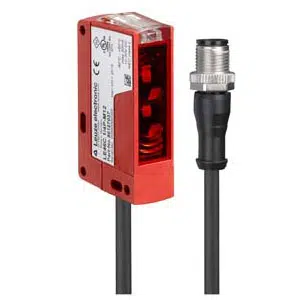

Leuze HT46C/4P-200-M12 | 50129752
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | HT46C/4P-200-M12 |
Leuze 0.05-1.5 m Operating range, black 6% diffuse sensor HT46C/4P-200-M12 - 50129752 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Special version | - |
| Sensing Distance | 0.005 ... 3 m |
| Beam path | Focused |
| Light source | LED, Red |
| Wavelength | 630 nm |
| Type of light spot geometry | Rectangular |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switching |
| Switching Output 2 | Transistor, PNP |
| Switching principle | Dark switching |
| Switching frequency | 250 Hz |
| Response time | 2 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable with connector |
| Cable length | 200 mm |
| Sheathing material | PUR |
| Cable color | Black |
| Number of conductors | - |
| Wire cross section | 0.2 mmΒ² |
| Thread size | M12 |
| Type | Male |
| Material | Plastic |
| No. of pins | 4 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 20.5 mm x 76.3 mm x 44 mm |
| Housing material | Plastic |
| Lens cover material | Plastic / PMMA |
| Housing color | Red |
| Type of display | LED |
| Ambient temperature, operation | -40 ... 60 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67 / IP 69K |
Reach Us by Email for Leuze 0.05-1.5 m Operating range, black 6% diffuse sensor HT46C/4P-200-M12 part no: 50129752 at Discounted Rates. Key Technical Features of HT46C/4P-200-M12, 50129752 are Cubic, Design Diffuse reflection principle with background suppression, 20.5 mm x 76.3 mm x 44 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.005 ... 3 m Sensing Distance, Cable with connector Type of connection, Plastic Housing material, IP 67 / IP 69K degree of protection. Navigate Your Needs with a Quote for your requirement of Leuze 0.05-1.5 m Operating range, black 6% diffuse sensor. Our pricing and support are unrivaled, especially when compared to other Competitors.
