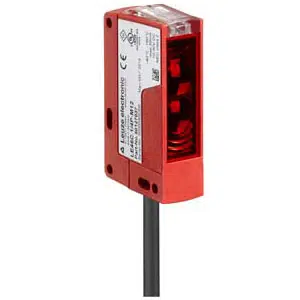

Leuze HT46C/2N Photoelectric Sensor
The Leuze HT46C/2N Photoelectric Sensor (Part No: ) offers a Cubic design, 0.005 ... 3 m sensing distance, Transistor, NPN output, PUR Cable , 4 -wire. Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the HT Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | HT46C/2N |
Leuze HT46C/2N Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Special version | - |
| Sensing Distance | 0.005 ... 3 m |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | 630 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, NPN |
| Switching principle | Light switching |
| Switching Output 2 | Transistor, NPN |
| Switching principle | Dark switching |
| Switching frequency | 250 Hz |
| Response time | 2 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable |
| Cable length | 2,000 mm |
| Sheathing material | PUR |
| Cable color | Black |
| Number of conductors | 4 -wire |
| Wire cross section | 0.2 mmΒ² |
| Dimension (W x H x L) | 20.5 mm x 76.3 mm x 44 mm |
| Housing material | Plastic |
| Lens cover material | Plastic / PMMA |
| Housing color | Red |
| Type of display | LED |
| Ambient temperature, operation | -40 ... 60 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67 |
Send Your Inquiry for Leuze 0.02-2 m Operating range, gray 18% diffuse sensor HT46C/2N part no: 50132578 with cost-effective solutions. Essential Technical Specs of HT46C/2N, 50132578 are Cubic, Design Diffuse reflection principle with background suppression, Black Dimension, LED, Red Light source, Transistor, NPN Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.005 ... 3 m Sensing Distance, Cable Type of connection, 4 -wire Housing material, -40 ... 60 Β°C degree of protection. Capture the Best Deal with a Quote for your requirement of Leuze 0.02-2 m Operating range, gray 18% diffuse sensor. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
