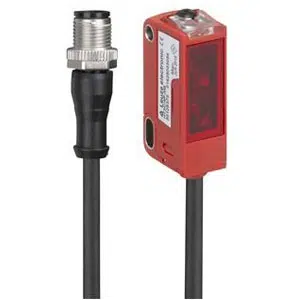

Leuze HT3C.XL/4P-200-M8 Photoelectric Sensor
The Leuze HT3C.XL/4P-200-M8 Photoelectric Sensor (Part No: 50129386 ) offers a 0.005 ... 0.05 m sensing range, Transistor, PNP output, PUR Cable with connector, - . Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the HT Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | HT3C.XL/4P-200-M8 |
Leuze HT3C.XL/4P-200-M8 Photoelectric Sensor โ Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Special version | Extra long light spot (XL) |
| Sensing Distance | 0.005 ... 0.05 m |
| Beam path | Divergent |
| Light source | LED, Red |
| Wavelength | 633 nm |
| Type of light spot geometry | Rectangular |
| Light spot size [at sensor distance] | 3 mm x 40 mm [50 mm] |
| Measurement range | - |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switching |
| Switching Output 2 | Transistor, PNP |
| Switching principle | Dark switching |
| Switching frequency | 1,000 Hz |
| Response time | 0.5 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable with connector |
| Cable length | 200 mm |
| Sheathing material | PUR |
| Cable color | Black |
| Number of conductors | - |
| Wire cross section | 0.2 mmยฒ |
| Thread size | M8 |
| Type | Male |
| Material | Metal |
| No. of pins | 4 -pin |
| Dimension (W x H x L) | 11.4 mm x 34.2 mm x 18.3 mm |
| Housing material | Plastic |
| Plastic housing | PC-ABS |
| Lens cover material | Plastic / PMMA |
| Housing color | Red |
| Type of display | LED |
| Operational controls | Multiturn potentiometer |
| Ambient temperature, operation | -40 ... 60 ยฐC |
| Ambient temperature, storage | -40 ... 70 ยฐC |
| Degree of protection | IP 67/IP 69K |
IndMALL Automation Dealing offers HT3C.XL/4P-200-M8 50129386 at unbeatable prices. The Main Technical Parameters of HT3C.XL/4P-200-M8 are Cubic, Design Diffuse reflection principle with background suppression, 11.4 mm x 34.2 mm x 18.3 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs1, Light switching Switching principle, Cable with connector, Plastic Sheathing material, PC-ABS, Plastic Housing material, IP 67/IP 69K degree of protection. Take the First Step with a Quote for your requirement of Leuze 15 %, From UB Residual ripple Diffuse Sensor. Choose us for unparalleled pricing and support over other Dealers & Distributors.
