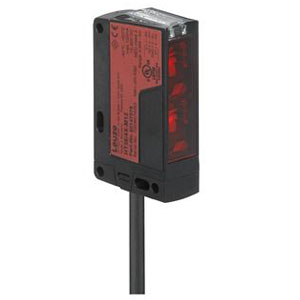

Leuze HT36I/4 Photoelectric Sensor
The Leuze HT36I/4 Photoelectric Sensor (Part No: ) offers a Cubic design, 0.01 ... 2.5 m sensing distance, Transistor, PNP output, PUR Cable , 3 -wire. Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the HT Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | HT36I/4 |
Leuze HT36I/4 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Special version | - |
| Sensing Distance | 0.01 ... 2.5 m |
| Beam path | Focused |
| Light source | LED, Infrared |
| Wavelength | 860 nm |
| Type of light spot geometry | Rectangular |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switching |
| Switching Output 2 | - |
| Switching principle | - |
| Switching frequency | 250 Hz |
| Response time | 2 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable |
| Cable length | 2,000 mm |
| Sheathing material | PUR |
| Cable color | Black |
| Number of conductors | 3 -wire |
| Wire cross section | 0.14 mmΒ² |
| Dimension (W x H x L) | 20.5 mm x 76.3 mm x 44 mm |
| Housing material | Plastic |
| Lens cover material | Plastic / PMMA |
| Housing color | Black |
| Type of display | LED |
| Ambient temperature, operation | -40 ... 60 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67 |
Talk to Our Engineer for Leuze plastic or PMMA lens cover diffuse sensor HT36I/4 part no: 50147099 at unbeatable prices. The Main Technical Parameters of HT36I/4, 50147099 are Cubic, Design Diffuse reflection principle with background suppression, 20.5 mm x 76.3 mm x 44 mm Dimension, LED, Infrared Light source, Transistor, PNP Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.01 ... 2.5 m Sensing Distance, Cable Type of connection, Plastic Housing material, IP 67 degree of protection. Capture the Best Deal with a Quote for your requirement of Leuze plastic or PMMA lens cover diffuse sensor. Our promise: More affordable pricing and more personalized support than other Dealers.
