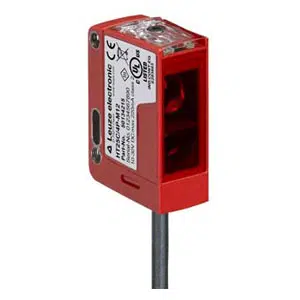

Leuze HT25CL1/2N Photoelectric Sensor
The Leuze HT25CL1/2N Photoelectric Sensor (Part No: ) offers a Cubic design, 0.005 ... 0.6 m sensing distance, Transistor, NPN output, PUR Cable , 4 -wire. Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the HT Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | HT25CL1/2N |
Leuze HT25CL1/2N Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Special version | - |
| Sensing Distance | 0.005 ... 0.6 m |
| Beam path | Collimated |
| Light source | Laser, Red |
| Wavelength | 650 nm |
| Type of light spot geometry | elliptic |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, NPN |
| Switching principle | Light switching |
| Switching Output 2 | Transistor, NPN |
| Switching principle | Dark switching |
| Switching frequency | 2,500 Hz |
| Response time | 0.2 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable |
| Cable length | 2,000 mm |
| Sheathing material | PUR |
| Cable color | Black |
| Number of conductors | 4 -wire |
| Wire cross section | 0.2 mmΒ² |
| Dimension (W x H x L) | 15 mm x 42.7 mm x 30 mm |
| Housing material | Plastic |
| Lens cover material | Plastic |
| Housing color | Red |
| Type of display | LED |
| Ambient temperature, operation | -40 ... 60 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 66/IP 67 |
Please speak to our Technical Engineer for HT25CL1/2N part no.50139641 at unbeatable prices. The Main Technical Parameters of HT25CL1/2N are Cubic, Design Diffuse reflection principle with background suppression, 15 mm x 42.7 mm x 30 mm Dimension, Laser, Red Light source, Transistor, NPN Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.005 ... 0.6 m Sensing Distance, Cable Type of connection, Plastic Housing material, IP 66/IP 67 degree of protection. Don't Miss Out on a Quote for your requirement of Leuze 4 -wire, 2000mm Cable length diffuse sensor. Experience the difference with our competitive pricing and superior support over other Traders.
