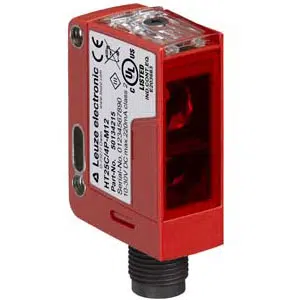

Leuze HT25CI.SLHF/4P-M12 Photoelectric Sensor
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | HT25CI.SLHF/4P-M12 |
Leuze HT25CI.SLHF/4P-M12 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Special version | Suppression of HF illumination (LED) |
| Sensing Distance | 0 ... 0.8 m |
| Beam path | - |
| Light source | LED, Infrared |
| Wavelength | 850 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switching |
| Switching Output 2 | Transistor, PNP |
| Switching principle | Dark switching |
| Switching frequency | 250 Hz |
| Response time | 2 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M12 |
| Type | Male |
| Material | PUR |
| No. of pins | 4 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 15 mm x 42.7 mm x 30 mm |
| Housing material | Plastic |
| Lens cover material | Plastic |
| Housing color | Red |
| Type of display | LED |
| Ambient temperature, operation | -40 ... 60 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 66/IP 67 |
Call us for HT25CI.SLHF/4P-M12 part no.50146090 with budget-friendly prices. Technical Attributes of HT25CI.SLHF/4P-M12 are Cubic, Design Diffuse reflection principle with background suppression, 15 mm x 42.7 mm x 30 mm Dimension, LED, Infrared Light source, Transistor, PNP Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0 ... 0.8 m Sensing Distance, Connector Type of connection, Plastic Housing material, IP 66/IP 67 degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze Object detection between the rollers of a roller conveyor. Rest assured, our pricing and support outshine other Suppliers.
