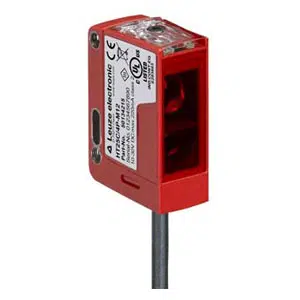

Leuze HT25CI/4P Photoelectric Sensor
The Leuze HT25CI/4P Photoelectric Sensor (Part No: ) offers a Cubic design, 0 ... 1.3 m sensing distance, Transistor, PNP output, PUR Cable , 4 -wire. Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the HT Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | HT25CI/4P |
Leuze HT25CI/4P Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Special version | - |
| Sensing Distance | 0 ... 1.3 m |
| Beam path | - |
| Light source | LED, Infrared |
| Wavelength | 850 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switching |
| Switching Output 2 | Transistor, PNP |
| Switching principle | Dark switching |
| Switching frequency | 1,000 Hz |
| Response time | 0.5 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable |
| Cable length | 2,000 mm |
| Sheathing material | PUR |
| Cable color | Black |
| Number of conductors | 4 -wire |
| Wire cross section | 0.2 mmΒ² |
| Dimension (W x H x L) | 15 mm x 42.7 mm x 30 mm |
| Housing material | Plastic |
| Lens cover material | Plastic |
| Housing color | Red |
| Type of display | LED |
| Ambient temperature, operation | -40 ... 60 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 66/IP 67 |
Mail us for -40 ... 60 Β°C Red part no: LED with budget-friendly prices. Technical Details of Red, LED are Cubic, Design Diffuse reflection principle with background suppression, 15 mm x 42.7 mm x 30 mm Dimension, LED, Infrared Light source, Transistor, PNP Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0 ... 1.3 m Sensing Distance, Cable Type of connection, Plastic Housing material, IP 66/IP 67 degree of protection. Elevate Your Project with a Quote for your requirement of -40 ... 60 Β°C. Rest assured, our pricing and support outshine other Suppliers.
