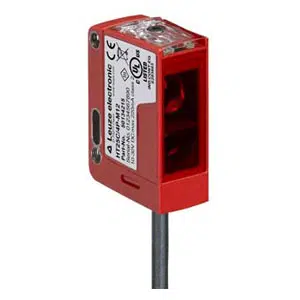

Leuze HT25C/6G-5000 Photoelectric Sensor
The HT25C/6G-5000 is a Photoelectric Sensor with 0–1.2 m sensing distance, 5,000 mm cable length, and push-pull outputs. The Leuze HT25C/6G-5000 belongs to the Leuze Photoelectric Sensor category and the HT series, operating on the diffuse reflection principle with background suppression, 10–30 V DC supply, 1,000 Hz switching frequency, 0.5 ms response time, dual push-pull transistor outputs, and IP66/IP67 protection.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | HT25C/6G-5000 |
Leuze HT25C/6G-5000 Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Special version | - |
| Sensing Distance | 0 ... 1.2 m |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | 640 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, Push-pull |
| Switching principle | Light switching (PNP)/dark switching (NPN) |
| Switching Output 2 | Transistor, Push-pull |
| Switching principle | Dark switching (PNP)/light switching (NPN) |
| Switching frequency | 1,000 Hz |
| Response time | 0.5 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable |
| Cable length | 5,000 mm |
| Sheathing material | PUR |
| Cable color | Black |
| Number of conductors | 4 -wire |
| Wire cross section | 0.2 mm² |
| Dimension (W x H x L) | 15 mm x 42.7 mm x 30 mm |
| Housing material | Plastic |
| Lens cover material | Plastic |
| Housing color | Red |
| Type of display | LED |
| Ambient temperature, operation | -40 ... 60 °C |
| Ambient temperature, storage | -40 ... 70 °C |
| Degree of protection | IP 66/IP 67 |
The HT25C/6G-5000 is a Leuze 5,000 mm Cable length diffuse sensor designed for short to medium-range industrial detection. This Photoelectric Sensor provides 0–1.2 m sensing distance, operates at 10–30 V DC, and supports 1,000 Hz switching frequency with IP67 protection. As part of the HT series, it uses the diffuse reflection principle with background suppression for controlled object detection in industrial automation systems.
In conveyor systems, packaging lines, and assembly automation, the HT25C/6G-5000 enables stable switching for object presence and position control. The push-pull transistor outputs allow flexible light and dark switching logic in PLC circuits. With a 5,000 mm PUR cable and 4-wire configuration, integration into control panels and distributed systems remains straightforward.
The Leuze HT25C/6G-5000 Photoelectric Sensor combines defined optical sensing and electrical characteristics for continuous operation. As a Leuze HT series model, it supports 0.5 ms response time and reliable output behavior under -40 to 60 °C conditions. The plastic housing and IP66/IP67 protection make the HT25C/6G-5000 suitable for industrial automation environments requiring consistent performance.
