In sourcing discussions, HT25C-4P-M8 is often placed next to Sick Diffuse Sensor, Leuze Ls5B Xx 200 M12 and Leuze Proximity Sensor so procurement teams can align budgets and technical requirements effectively.

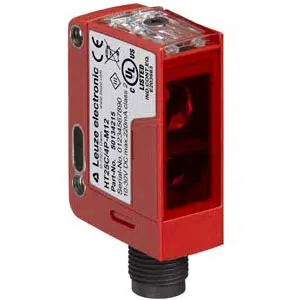

Leuze HT25C/4P-M8 Photoelectric Sensor
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | HT25C/4P-M8 |
Leuze HT25C/4P-M8 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Special version | - |
| Sensing Distance | 0 ... 1.2 m |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | 640 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switching |
| Switching Output 2 | Transistor, PNP |
| Switching principle | Dark switching |
| Switching frequency | 1,000 Hz |
| Response time | 0.5 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M8 |
| Type | Male |
| Material | PUR |
| No. of pins | 4 -pin |
| Encoding | - |
| Dimension (W x H x L) | 15 mm x 42.7 mm x 30 mm |
| Housing material | Plastic |
| Lens cover material | Plastic |
| Housing color | Red |
| Type of display | LED |
| Ambient temperature, operation | -40 ... 60 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 66/IP 67 |
Give Us a Call for Leuze 25C diffuse Sensor Cubic HT25C/4P-M8 part no: 50134217 with budget-friendly prices. Technical Attributes are HT25C/4P-M8, 50134217 include Cubic, Design Diffuse reflection principle with background suppression, 15 mm x 42.7 mm x 30 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0 ... 1.2 m Sensing Distance, Connector Type of connection, Plastic Housing material, IP 66/IP 67 degree of protection. Navigate Your Needs with a Quote for your requirement of Leuze 25C diffuse Sensor Cubic. We excel in offering more cost-effective and supportive solutions than other Competitors.
