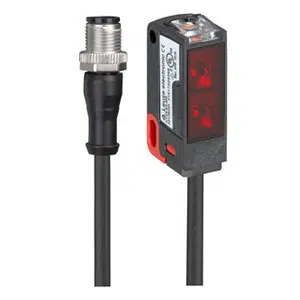

Leuze HT23/NX-200-M12 | 50138482

Technical Specifications of Leuze HT23/NX-200-M12 50138482:

Design	Cubic
Operating Principle	Diffuse reflection principle with background suppression
Sensing Distance	0.005 ... 0.4 m
Light Source	LED, Red

Leuze 200 mm cable with an M12 connector diffuse sensor HT23/NX-200-M12 - 50138482 Technical Specifications:

Specification	Value
Design	Cubic
Operating Principle	Diffuse reflection principle with background suppression
Sensing Distance	0.005 ... 0.4 m
Beam Path	Focused
Light Source	LED, Red
Wavelength	645 nm
Supply Voltage UB	10 ... 30 V, DC, Incl. residual ripple
Switching Output	Transistor, NPN
Switching principle	Dark switching
Switching frequency	1,000 Hz
Response time	0.5 ms
Function	Signal OUT Voltage supply
Type of connection	Cable with connector
Cable length	200 mm
Sheathing material	PUR
Cable color	Black
Number of Conductors	4 -wire
Wire cross section	0.2 mm²
Thread size	M12
Type	Male
Material	Plastic
No. of pins	4 -pin
Encoding	A-coded
Dimension (W x H x L)	11.4 mm x 34.2 mm x 18.3 mm
Housing material	Plastic
Plastic housing	PC-ABS
Lens cover material	Plastic / PMMA
Housing color	Black Red
Type of display	LED
Ambient temperature, operation	-40 ... 60 °C
Ambient temperature, storage	-40 ... 70 °C
Degree of protection	IP 67

Talk to Our Engineer for HT23/NX-200-M12 part no.50138482 at competitive rates. Here are the brief Technical Specifications of HT23/NX-200-M12 are Cubic, Design Diffuse reflection principle with background suppression, 11.4 mm x 34.2 mm x 18.3 mm Dimension, LED, Red Light source, Transistor, NPN Switching Outputs, Dark switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.005 ... 0.4 m Sensing Distance, Cable with connector Type of connection, Plastic Housing material, IP 67 degree of protection. It's Time to get a Quote for your requirement of Leuze 200 mm cable with an M12 connector diffuse sensor. We guarantee unmatched pricing and unparalleled support compared to other Dealers.
