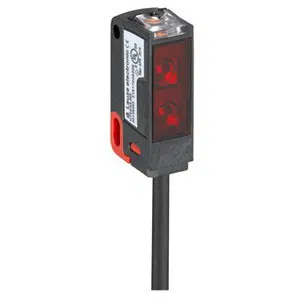

Leuze LED or red light source diffuse sensor HT23/2 - 50138442 Technical Specifications:
Technical Specifications of Leuze HT23/2 50138442:
| Design | Cubic |
| Operating Principle | Diffuse reflection principle with background suppression |
| Sensing Distance | 0.005 ... 0.4 m |
| Light Source | LED, Red |
Leuze LED or red light source diffuse sensor HT23/2 - 50138442 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Sensing Distance | 0.005 ... 0.4 m |
| Beam path | Focused |
| Light source | LED, Red |
| Wavelength | 645 nm |
| Type of light spot geometry | Round |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output | Transistor, PNP |
| Switching principle | Light switching |
| Switching frequency | 1,000 Hz |
| Response time | 0.5 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable |
| Cable length | 2,000 mm |
| Sheathing material | PUR |
| Cable color | Black |
| Number of conductors | 3 -wire |
| Wire cross section | 0.14 mmยฒ |
| Dimension (W x H x L) | 11.4 mm x 34.2 mm x 18.3 mm |
| Housing material | Plastic |
| Plastic housing | PC-ABS |
| Lens cover material | Plastic / PMMA |
| Housing color | Black Red |
| Type of display | LED |
| Ambient temperature, operation | -40 ... 60 ยฐC |
| Ambient temperature, storage | -40 ... 70 ยฐC |
| Degree of protection | IP 67 |
Please speak to our Technical Engineer for HT23/2 part no.50138442 at unbeatable prices. The Main Technical Parameters of HT23/2 are Cubic, Design Diffuse reflection principle with background suppression, 11.4 mm x 34.2 mm x 18.3 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs, Light switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.005 ... 0.4 m Sensing Distance, Cable Type of connection, Plastic Housing material, IP 67 degree of protection. Don't Miss Out on a Quote for your requirement of Leuze LED or red light source diffuse sensor. Experience the difference with our competitive pricing and superior support over other Traders.
